Main Features et Applications

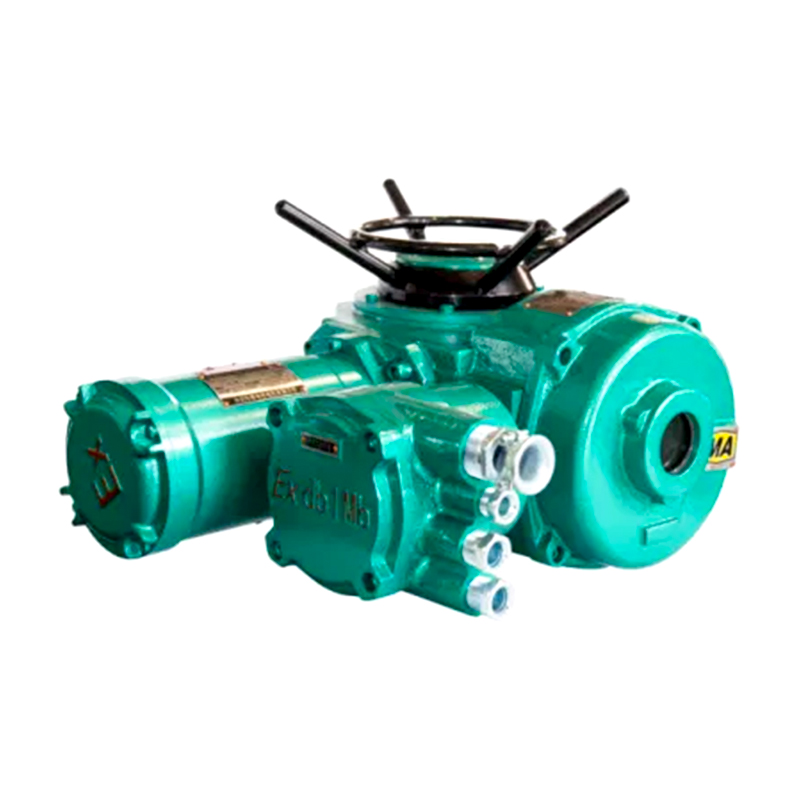

Et ZB series metalla CREPITUS-probationem valvae electrica fabrica est maxime disposito et fabricari ad usum conditionibus in calculus metalla. Valvulae idoneam linearem motus valvae laminis, ut porta Valvulae distribution valvulae aquarum portarum After adding a two-stage reduction gearbox, it can also be used for valves with a 90 degree rotation of the valve plate, such as butterfly valves, dampers, etc. After being matched with the KXBC mining explosion-proof valve electric device control box , Non potest esse cum DCS ratio ad consequi automation imperium.
Design et vestibulum signa ZB serie Mining CREPITUS Probationem CYMBALON electrica fabrica
| Q / 3204CN001-2011 | Technical conditionibus meum flameproof valvae electrica fabrica |
| GB3836.1-2010 | Electrical Equipment ad explosive atmosphaerae Part I: General Requirements |
| GB3836.2-2010 | Electrical Equipment ad explosive atmosphaerae Part II: Flameproof Type "D" |

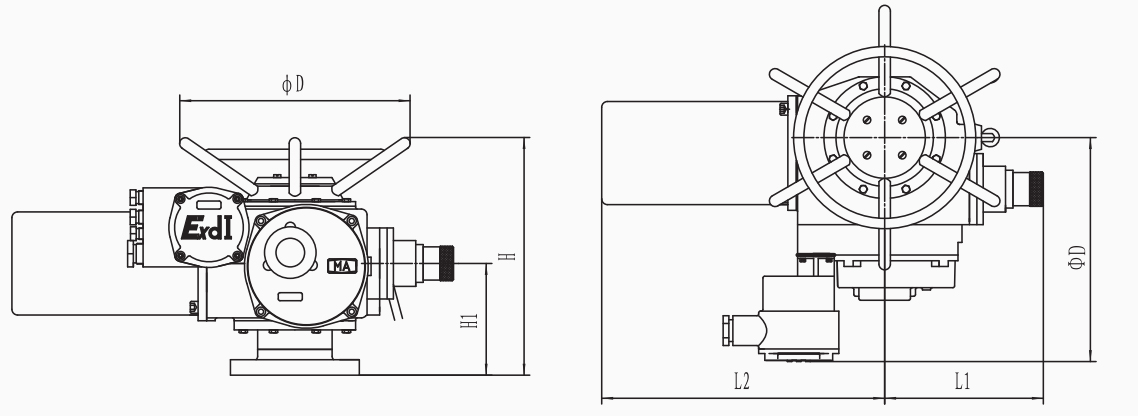

Tumultu et dimensionum mensam
| Exemplar | H | H1 | L1 | L2 | F | Φd |
| ZB10 / ZB15 / ZB20 / ZB30 | 320 | 130 | 200 | 295-400 | 320 | 350 |
| ZB45 / Zb60 | 415 | 195 | 280 | 395-545 | 395 | 470 |
| ZB90 / ZB120 | 455 | 195 | 285 | 412-565 | 430 | 500 |
| ZB180 / ZB250 / Zb350 | 585 | 250 | 320 | 475-700 | 480 | 320 |
ZB / Zby Exemplar Specifications et principalis perficientur parametri
| Exemplar specifications | Aureus Nominal (N · M) | Maximam caule diameter (M) | Maximum vicissim (Volvit) | Manual celeritate Ratio | Output celeritate (R / min) | Motricium Power (Kw) | Motor Current (A) | Pondus (KG) | |
| 660v | 380V | ||||||||
| ZB / ZBY10 | 100 | 28 | 400 | I: I | 24 | 0.25 | 0.75 | 1.3 | 64 |
| ZB / ZBY15 | 150 | 28 | 400 | I: I | 24 | 0.37 | 0.92 | 1.6 | 65 |
| ZB / ZBY20 | 200 | 40 | 400 | I: I | 24 | 0.55 | 1.4 | 2.4 | 67 |
| ZB / ZBY30 | 300 | 40 | 400 | I: I | 24 | 0.75 | 1.8 | 3.0 | 69 |
| ZB / Zby45 | 450 | 48 | 400 | I: I | 24 | 1.1 | 1.9 | 3.4 | 114 |
| ZB / ZBY60 | 600 | 48 | 400 | I: I | 24 | 1.5 | 2.6 | 4.5 | 120 |
| ZB / Zby90 | 900 | 60 | 400 | I: I | 24 | 2.2 | 3.8 | 6.5 | 144 |
| ZB / Zby120 | 1200 | 60 | 400 | I: I | 24 | 3 | 4.7 | 8.2 | 147 |
| ZB180 | 1800 | 70 | 400 | 22.5: I | 24 | 5.5 | 7.5 | 13 | 264 |
| ZB250 | 2500 | 70 | 400 | 22.5: I | 24 | 7.5 | 9.5 | 16.5 | 269 |
| Zb350 | 3500 | 75 | 400 | 22.5: I | 24 | 11 | 12.1 | 21 | 275 |
Nota: Alius celeritates potest provisum est in occursum user necessitates.
Structural Schematic Diagram et dimensiones ZB / Zby et CYMBALON
| Model | Torque Type JB2920 | |||||||||||
| Flange numerum | D | D1 | D2 (H9) | H1 | f | h | D1 | D2 | d | n | α | |
| ZB / ZBy10 / XV | 2 | 145 | 120 | 90 | 2 | 4 | 8 | 30 | 45 | M10 | 4 | XLV ° |
| ZB / ZBY20 / XXX | 3 | 185 | 160 | 125 | 10 | 42 | 58 | M12 | ||||
| ZB / ZBY45 / LX | 4 | 225 | 195 | 150 | 5 | 12 | 50 | 72 | Φ18 | |||
| ZB / Zby90 / CXX | 5 | 275 | 235 | 180 | 14 | 62 | 82 | Φ22 | ||||
| ZB180 / CCL | 7 | 330 | 285 | 220 | 3 | 6 | 16 | 72 | 98 | Φ26 | ||
| ZB350 | 8 | 380 | 340 | 280 | 20 | 83 | 118 | Φ22 | 8 | 22.5 ° | ||
