Lupum Eculeo et PINS PNUMUMATTATATIC Manufacturers, Factory

Eculeo et PINS PNUMUMATTATATIC

Adepto Quotes

Technical features

In series pneumatic actuators utilitas provectus praecisione machining apparatu, summus qualitas materiae et industriae artis consilium technology. Post rigorous probatio et productio linea optimeization, haec series actuators habet commoda lenis et certa operatio, diu operantes vitam, magnam adveniens, flexibilibus, altum anti-corrosio perficientur, flexibilibus lectio, et sumptus-efficaciam.

Partes et materiae

Numerus	Nomen	Qty	Materia	Anticorrosion	Libitum
1	Indicator screw	1	Engineering plastics immaculatam ferro
2	Indicator	1	Engineering Plastics
3	Circlip	1	Immaculatam ferro
4	lower	1	Immaculatam ferro
5	Gaus	1	Engineering Plastics
6	Cylindrus	1	Aluminium Profile ((VI) V-T5)	Durum anodizing, etc.
7	Interiorem gasket	1	Engineering Plastics
8	Cam	1	XLV # ferro
9	Superiorem sagitta o-anulum	1	Nitile Flexilis		Fluororubber / Minimum Temperatus Nitrile Flexilis
10	Superius Shaft Support Orbis	1	Engineering Plastics
11	PRAEVOLVO	1	Alloy Steel	Nickel phosphoro	Immaculatam ferro
12	Inferius Shaft Support Orbis	1	Engineering Plastics
13	Inferius Shaft O-anulum	1	Nitile Flexilis		Fluororubber / Minimum Temperatus Nitrile Flexilis
14	Adjusting fulmine o-anulum	2	Nitile Flexilis		Fluororubber / Minimum Temperatus Nitrile Flexilis
15	Plug	2	Nitile Flexilis
16	Nucis	2	Immaculatam ferro
17	Adjusting fulmine	2	Immaculatam ferro
18	piston	2	Cast Aluminium	Oxidatio
19	Piston Guide	2	Engineering Plastics
20	Piston o-anulum	2	Nitile Flexilis		Fluororubber / Minimum Temperatus Nitrile Flexilis
21	Piston Support Orbis	2	Engineering Plastics
22	verno	0 ~ XII	Verno Steel	Electrophoretic Poena
23	Finis c Cap Domine, anulum	2	Nitile Flexilis		Fluororubber / Minimum Temperatus Nitrile Flexilis
24	Finem caps	2	Cast Aluminium	Pulveris coating, etc.
25	Finem cap stupra	8	Immaculatam ferro
26	Pulveris plug	2	plastic

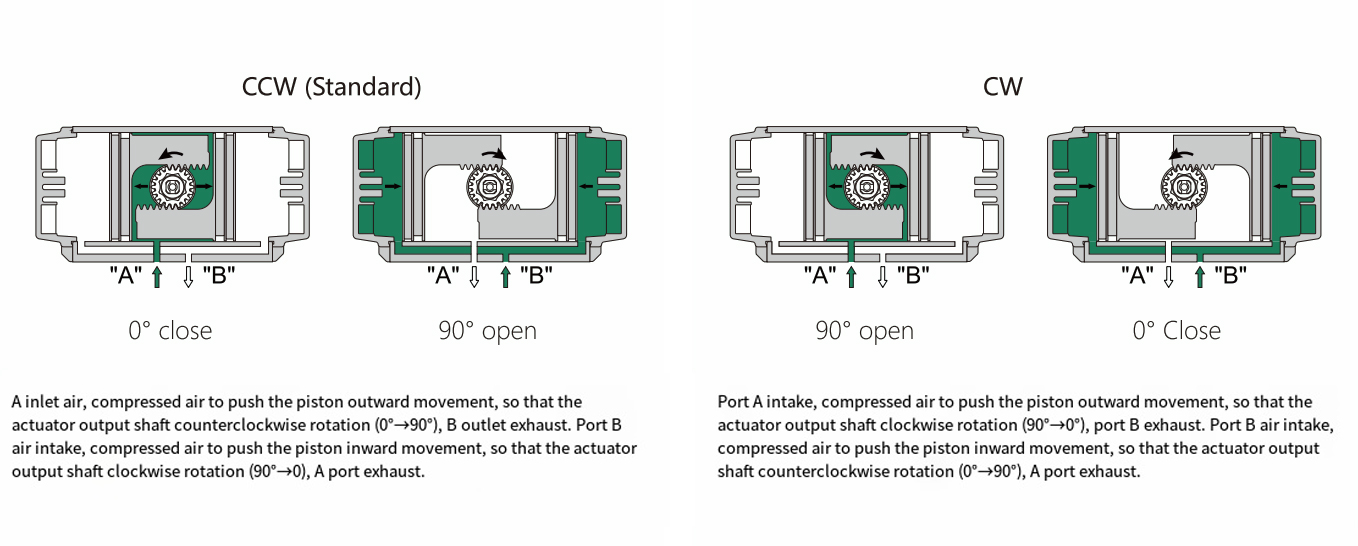

Opus

Duplex agens actuator

Unum agens actuator

Duplex agens output torque

Exemplar	Aeris Supplo Press (Unit: Bar)
Exemplar	2	2.5	3	4	4.5	5	5.5	6	7	8
Da-XXXII	3	4	5	6	7	8	8	9	11	12
Da-XL	5	6	7	10	11	12	13	14	17	19
Da-LII	8	10	12	16	18	20	22	24	28	32
LXIII da	15	18	22	29	33	36	40	44	51	58
Da-LXXV	20	25	30	40	45	50	55	60	70	80
Da-LXXXIII	31	39	47	63	70	78	86	94	110	125
Da-XCII	45	56	68	90	102	113	124	135	158	181
Da-CV	66	83	99	132	149	165	182	198	231	264
Da-CXXV	100	125	150	200	226	251	276	301	351	401
Da-CXL	171	214	256	342	385	427	470	513	598	684
Da-CLX	266	332	399	532	598	665	731	798	931	1064
Da-CXC	426	532	638	851	958	1064	1170	1277	1490	7702
DA-CCX	532	665	798	1064	1197	1330	1463	1596	1862	2128
Da-CCXL	769	962	1154	1539	1731	1924	2116	2308	2693	3078
Da-CCLXX	1170	1462	1754	2339	2632	2924	3216	3509	4094	4679
Da-CCC	1526	1908	2289	3052	3434	3815	4197	4578	5341	6104
Da-CCCL	2285	2856	3427	4570	5141	5712	6283	6854	7997	9139
Da-CD	3256	4070	4884	6512	7326	8140	8954	9768	11396	13024

Electio duplex agens Actuator:
Sub normalis operating conditionibus, salus factor duplex agens actuator est XX% -30%.
Exemplum:
Valvae torque = 100nm
Salus torque = 100x (I XXX%) = 130nm
Air fons pressura = 5BAR
Secundum duplex-agens torque mensa, minimum specificationem duplex agens actuator est ada105.

Una agens output torque

Output torque																Springs'Output
Aeris pressura		2.5Bar		3Baf		4BBAR		5BAR		6Bar		7Bar		8BBBAR		Springs'Output
Exemplar	Spring Qty	0 °	90	0 °	90	0 °	90	0 °	XC °	0 °	XC °	0 °	XC °	0 °	XC °	XC °	0 °
Exemplar	Spring Qty	Satus	Finis	Satus	Finis	Satus	Finis	Satus	Finis	Satus	Finis	Satus	Finis	Satus	Finis	Satus	Finis
ASR-XL	K2	1.3		2.7		5.0	1.4	75	3.1	9.8	4.5					7.5	4.8
ASR-LII	K5	5.7	3.8	7.6	5.7											6.2	4.3
	K6	4.9	2.5	6.9	4.5	10.9	8.5									7.4	5
	K7	4.0	1.3	6.0	3.3	9.8	7.3	14.0	10.4							8.6	5.9
	K8			5.2	2.0	9.2	6.0	13.2	9.1	17.2	14.1					9.9	6.7
	K9			4.3	0.8	8.3	4.8	12.3	7.9	16.3	12.8	20.3	16.8			11.1	7.6
	K10					7.4	3.6	11.5	6.7	15.5	11.6	19.5	15.6			12.4	8.5
	11					6.6	2.3	10.6	5.4	14.6	10.4	18.6	14.3	22.6	18.3	13.6	93
	K12							9.7	4.2	13.8	9.1	17.8	12.2	21.8	17.1	14.8	10.2
ASR, LXIII	K5	11.4	7.7	15.0	11.4	22.3	18.9									10.4	6.8
	K6	10.1	5.7	13.6	9.3	20.9	16.6	28.3	23.9							12.5	8.2
	K7	8.6	3.6	12.5	7.2	19.5	14.5	26.8	21.9							14.6	9.6
	K8			10.9	5.1	18.2	12.4	25.5	19.8	32.8	27.0	40.1	34.3			16.7	10.9
	K9					16.8	10.4	24.1	17.7	31.4	24.9	38.7	32.2			18.8	12.3
	K10					14	8.2	22.8	15.6	30.0	22.8	37.3	30.1	44.7	37.4	20.9	13.7
	k11							21.5	13.5	28.7	20.7	36.0	28.0	43.3	35.3	22.9	15.0
	K12							20.0	11.4	27.3	18.6	34.6	25.9	41.9	33.3	25.0	16.4
ASR, LXXV	K5	14.5	10.6	19.4	15.5	29.5	25.7									14.5	10.5
	K6	12.4	7.6	17.3	12.6	27.4	22.7	37.5	32.8							17.4	12.7
	K7	10.4	4.8	15.2	9.7	25.3	19.9	35.4	29.9							20.3	14.8
	K8			13.1	6.8	23.1	16.9	33.3	27.0	43.2	37.0	53.3	47.0			23.2	16.9
	K9					21.0	14.1	31.2	24.1	41.1	34.1	51.2	44.2			26.1	19.0
	K10					19.0	11.1	28.8	21.2	39.0	31.2	49.1	41.2	59.1	51.2	29.0	21.1
	K11							27.0	18.3	37.0	28.3	47.0	38.4	57.0	48.4	31.9	23.2
	K12							24.9	15.4	34.9	25.4	44.9	35.4	54.9	45.4	34.7	25.3
ASR CXL	K5	128	85	171	127	256	213									129	86
	K6	111	59	154	102	239	187	325	273							155	103
	K7	94	33	137	76	222	162	308	247							181	120
	K8			120	50	205	136	291	221	376	307	462	392			206	137
	K9					187	110	273	196	358	281	444	367			232	155
	K10					170	84	256	169	341	255	427	340	512	426	258	172
	K11							238	143	324	229	409	314	495	400	284	189
	K12							221	118	307	203	392	289	478	374	310	206
ASR-CLX	K5	193	124	259	191	392	324									208	140
	K6	165	83	232	149	365	282	498	415							250	168
	K7	137	41	203	107	336	240	469	373							292	196
	K8			176	66	309	199	442	237	575	465	708	598			333	223
	K9					280	157	413	290	546	423	679	556			375	251
	K10					253	115	386	248	519	381	652	514	785	647	417	279
	K11							358	207	491	340	624	473	757	606	458	307
	K12							330	165	463	298	596	431	729	564	500	335
ASR, CXC	K5	332	222	438	329	651	542									309	200
	K6	292	161	398	267	611	480	824	693							371	240
	K7	252	99	358	205	571	418	784	631							433	280
	K8			318	143	531	356	744	569	957	782	1169	995			495	320
	K9					491	295	704	507	917	720	1130	933			557	360
	K10					451	233	664	446	877	658	1090	871	1302	1084	618	400
	K11							624	384	837	597	1050	809	1263	1022	680	440
	K12							584	322	797	535	1010	748	1223	960	742	480
ASR, CCX	K5	390	285	523	418	789	684									380	275
	K6	335	209	468	342	734	608	1000	874							456	330
	K7	280	133	413	266	679	532	945	798							532	385
	K8			358	190	624	456	890	722	1156	988	1422	1254			608	440
	K9					569	380	835	646	1101	912	1367	1178			684	495
	K10					514	304	780	570	1046	836	1312	1102	1578	1368	760	550
	K11							725	494	991	760	1257	1026	1523	1292	836	605
	K12							670	418	936	684	1202	950	1468	1216	912	660
