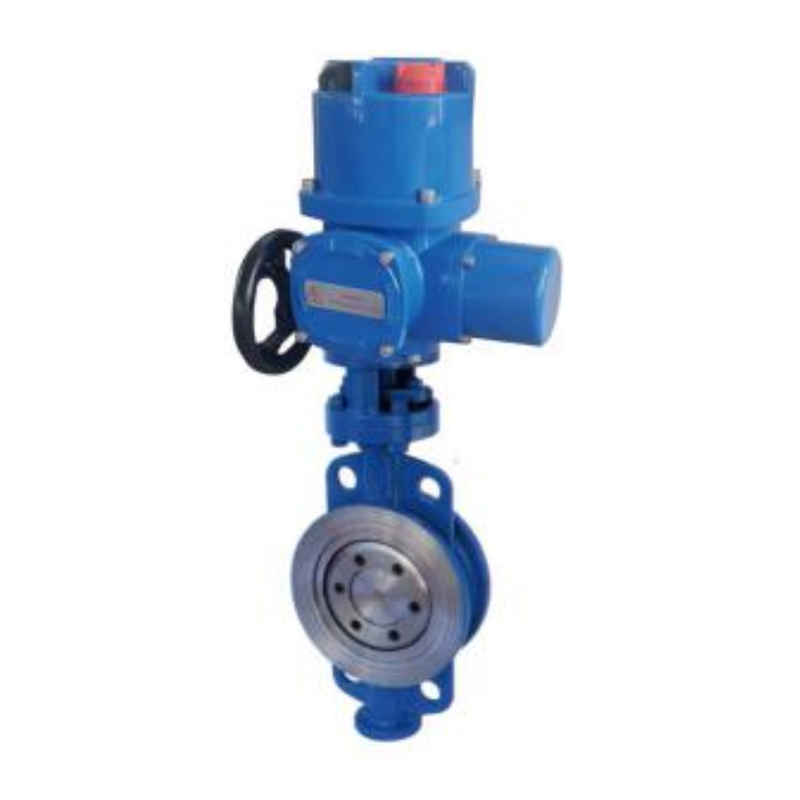

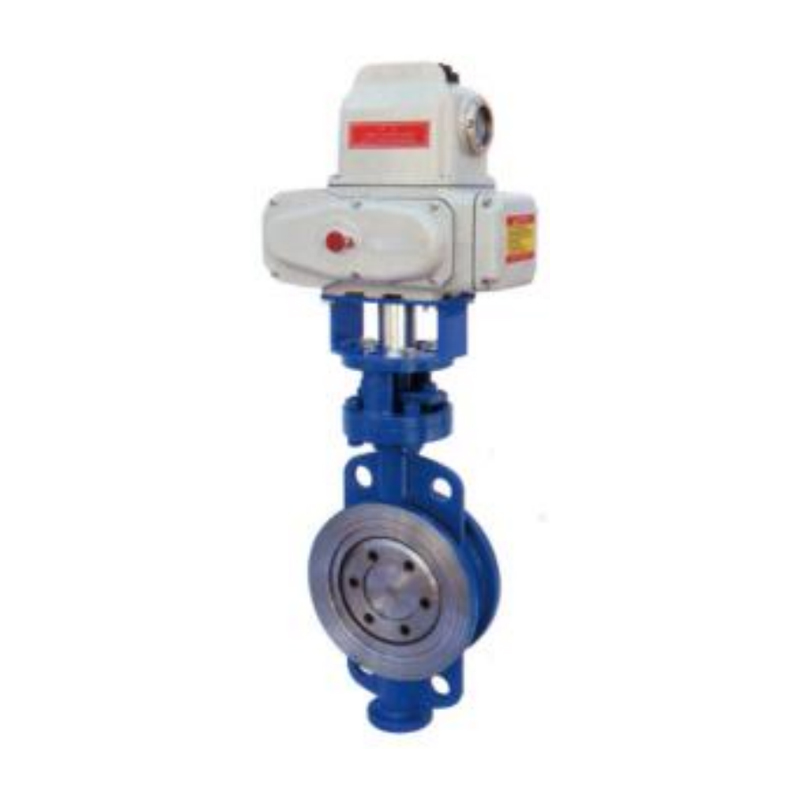

D971H Electric durum sigillum Fibulae papilionem valvae

Adepto Quotes

Brevis

D971H Electric durum sigillum papilionem valvae aduere tres eccentricum durum sigillum structuram consilio. After strict calculation, the "U" - shaped sealing ring has al no friction with the butterfly plate, solving the problem of traditional eccentric butterfly valves still having sliding contact friction on the sealing surface at the moment of opening and closing from 0 to 10 degrees . Achieves effectum separationis signa superficies papilio laminam ad momentum aperire et signantes in tempore claudendo, extendens ministerium vitae et consequi bona signa perficientur.
Et signantes superficies de discus laminam factum est de dura aurum afferentem Cobalt fundatur Welding, quod est gerunt repugnans. Magna mediocri pervideo laminam adoptat artus structuram excelsis virtute magna overcurrent area et humilis fluxus resistentia. Et unique structuram permittit in "switch" ut perficitur per simpliciter rotating valvae derivatur XC °. Ideo electrica dura signati papilio valvulae late in pipelines ad mordacitatem media ut metallurgy, electricae, PETROLEUM, chemical, aere et INCILE cum medium temperaturis ≤ CDXXV ≤ influunt et cutting fluidorum. Quod productum obsequitur cum National GB / T13927-92 valvae pressura test vexillum.

Technica modularis

Electric Actuator Libitum Features	Switching, integralis, adjusting, intelligentes
Electric Actuators sunt available in varietate models	Q, DQ, QM, QC, AKQ series, magna diametri libitum Z Series, AK Series
Voltage	AC220V, Ac110V, AC380, DC12V, DC24V, DC110V
Nominis diameter	Dn50mm ~ dn1200mm
Nominis pressura	Pn1.0mpa, pn2.5mpa
Applicabiles temperatus	-30 ~ CDXXV ℃
Nexus	FIGHT Type
Corporis materia	Carbon ferro, immaculatam ferro
Misc Material	Carbon Steel, immaculatam ferro, Alloy ferro, etc.
Sedes lining	Tungsten Carbide, Tungsten Carbide, Nickel Alloy, Graphite compositum, PTFFe
Applicabiles	Aquam, vapor, oleum, debilis mordax media, etc.

Principalis mensam dimensionem

Dn (M)	1.0MPA					1.6MPA
Dn (M)	L	H	D1	D2	N-φd	L	H	D1	D2	N-φd
40	33	76	110	85	IV-φ18	33	76	110	85	IV-φ18
50	43	85	125	100	IV-φ18	43	85	125	100	IV-φ18
65	46	95	145	120	IV-φ18	46	95	145	120	IV-φ18
80	49	110	160	135	IV-φ18	64	110	160	135	VIII-φ18
100	56	122	180	155	VIII-φ18	64	122	180	155	VIII-φ18
125	64	138	210	185	VIII-φ18	70	138	210	185	VIII-φ18
150	70	158	240	210	VIII-φ22	76	158	240	210	VIII-φ22
200	71	188	295	265	VIII-φ22	89	188	295	265	XII, φ22
250	76	224	350	320	XII, φ22	114	224	350	320	XII, φ26
300	83	254	400	368	XII, φ22	114	254	400	368	XII, φ26
350	92	288	460	428	XVI, φ22	127	288	460	428	XVI, φ26
400	102	320	515	482	XVI, φ26	140	320	515	482	XVI, φ30
450	114	350	565	532	XX, φ26	152	350	565	532	XX, φ30
500	127	388	620	585	XX, φ26	152	388	620	585	XX-φ33
600	154	440	725	685	XX, φ30	178	440	725	685	XX, φ36
700	165	488	940	800	XXIV, φ30	229	488	840	800	XXIV, φ30
800	190	572	950	905	XXIV, φ33	241	572	950	905	XXIV, φ39
900	203	628	1050	1005	XXVIII, φ33	241	628	1050	1005	XXVIII, φ39
1000	216	698	1160	1115	XXVIII, φ36	300	698	1160	1115	XXVIII, φ42
1200	254	810	1380	1325	XXXII-φ39	360	810	1380	1325	XXXII-φ48
1400	279	940	1590	1525	XXXVI-φ42	390	940	1590	1525	XXXVI-φ48
1600	318	1060	1820	1750	XL-φ48	440	1060	1820	1750	XL-φ55
1800	356	1150	2020	1950	XLIV, φ48	490	1150	2020	1950	XLIV-φ55
2000	406	1265	2230	2160	XLVIII-φ48	540	1265	2230	2160	XLVIII-φ60
