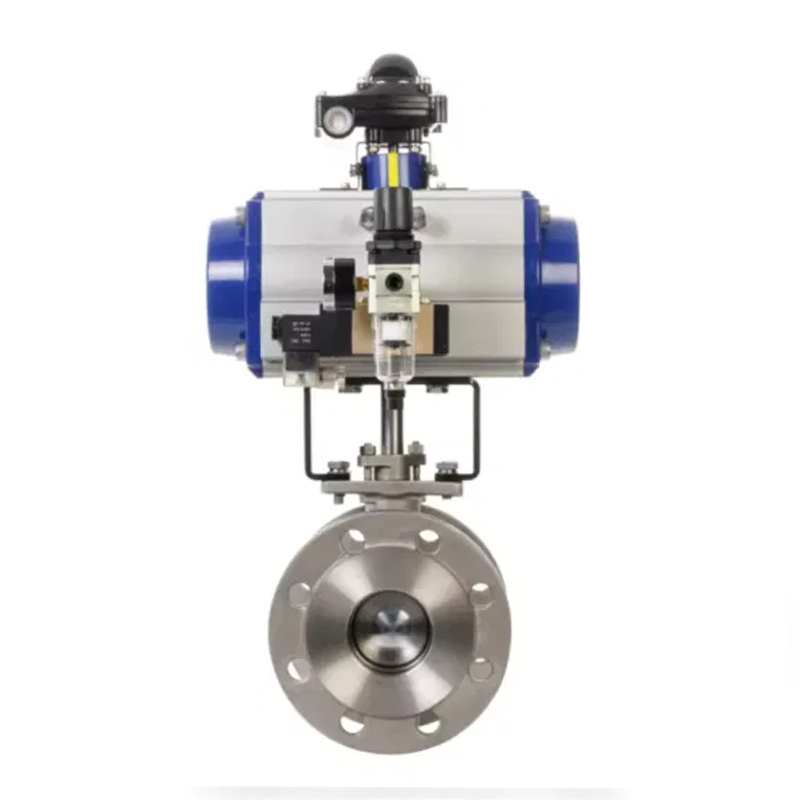

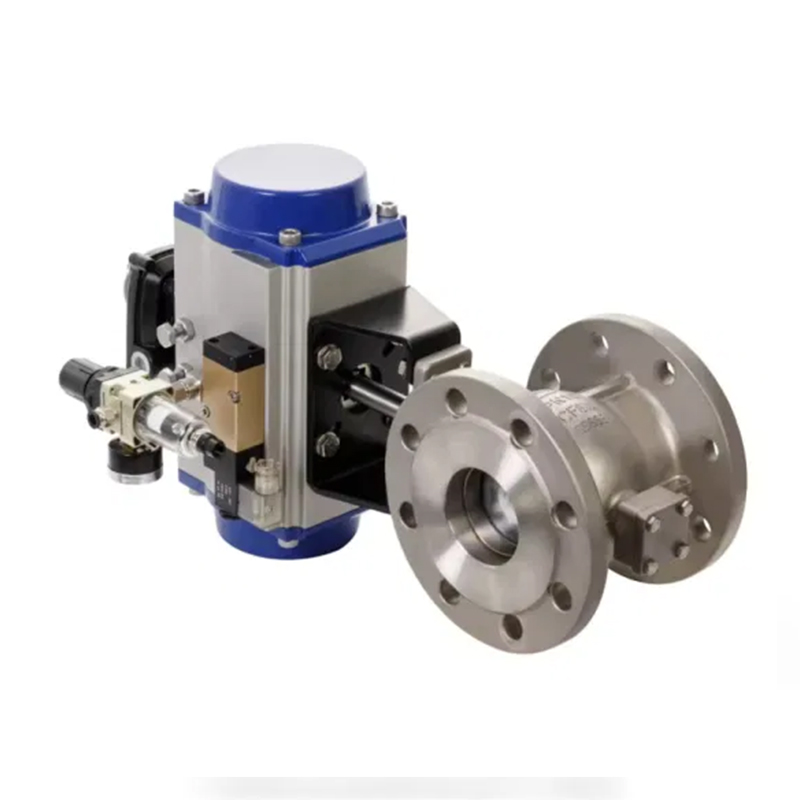

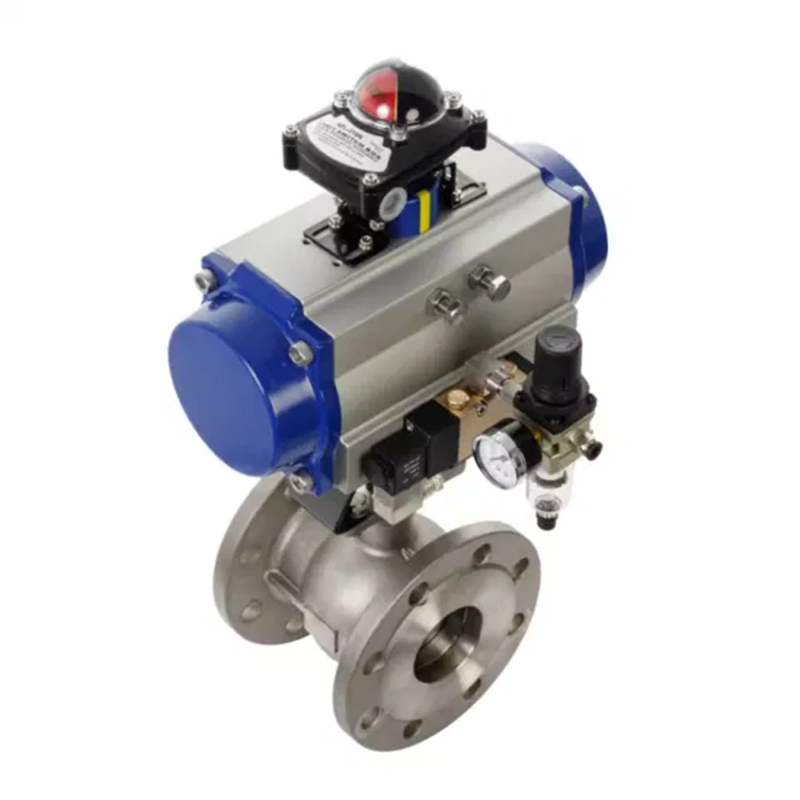

Q641F Pneumatic Pila Pila valvae

Adepto Quotes

Brevis

Q641F Flange pila valvae habet idem XC-gradu gyrationis elevatio actum, cum circularis per foraminis vel alveo transit per suum axem. Ratio sphaerarum superficiem et channel foramen debet esse talis ut cum pila gyrari XC gradus, et in eleemosum et exitus ut omnes praesentem sphaericum superficies, ita incidit fluxus.
Pneumatic LAGIUM pila valvae tantum opus operari per rotating aer XC gradus et ipsum parva torque prope arcte. Omnino aequalis interiore cavitatis valvae corpus praebet minima resistentia et recta fluxus alveo ad medium. Est plerumque crediderunt quod pila valvae apta recta foramen et claudendo, sed progressionem in annis habet disposito pila valvae ad eam habere munus throttting et moderantum fluxus. The main features of the ball valve are its compact structure, easy operation and maintenance, suitable for general working media such as water, solvents, acids and natural gas, and also suitable for media with harsh working conditions, such as oxygen, hydrogen peroxide, methane et ethylene. Pila valvae corpus esse integralis vel combined.

Technica modularis

Pneumatica Actuator libitum Features	Duplex agens, una-agens
Pneumatic Actuator libitum exempla	In series, AW Series
Solenoidal Voltage	Ac110V, AC220V, AC24V, DC24V
Air pressura	2BAR-8Bar
Nominis diameter	Dn15mm, dn200mm
Nominis pressura	Pn1.0mpa ~ pn2.5mpa
Applicabiles temperatus	PTFFE: -30- 120ºC Ppl: ≤350ºC Metal Sigillum: ≤450ºC
Nexus	Flange
CYMBALON corpus Material	Ferrum, cast ferro, CCCIV, CCCXVI, 316L
Valvae laminam materiales	CCCIV, CCCXVI, 316L
Valvae sedes lining	Ptfe, ppl, metallum sigillum
Applicabiles	Aqua, PETROLEUM, Acidum, Viscosis liquor, Slurry Medium, etc.

Principalis mensam dimensionem

DN (mm)	L	1.0MPA				1.6MPA				2.5MPA
DN (mm)	L	L	D	D1	N-φd	L	D	D1	N-φd	L	D	D1	N-φd
15	15	130	95	65	IV-φ14	130	95	65	IV-φ14	130	95	65	IV-φ14
20	20	140	105	75	IV-φ14	140	105	75	IV-φ14	140	105	75	IV-φ14
25	25	150	115	85	IV-φ14	150	115	85	IV-φ14	150	115	85	IV-φ14
32	32	165	135	100	IV-φ18	165	135	100	IV-φ18	165	135	100	IV-φ18
40	40	180	145	110	IV-φ18	180	145	110	IV-φ18	180	145	110	IV-φ18
50	50	200	160	125	IV-φ18	200	160	125	IV-φ18	200	160	125	IV-φ18
65	65	220	180	145	IV-φ18	220	180	145	IV-φ18	220	180	145	VIII-φ18
80	80	250	195	160	IV-φ18	250	195	160	VIII-φ18	250	195	160	VIII-φ18
100	100	280	215	180	VIII-φ18	280	215	180	VIII-φ18	280	230	190	VIII-φ23
125	125	320	245	210	VIII-φ18	320	245	210	VIII-φ18	320	270	220	VIII-φ25
150	150	360	280	240	VIII-φ23	360	280	240	VIII-φ23	360	300	250	VIII-φ25
200	200	400	335	295	VIII-φ23	400	335	295	XII, φ23	400	360	310	XII, φ25
