Main Features et Applications

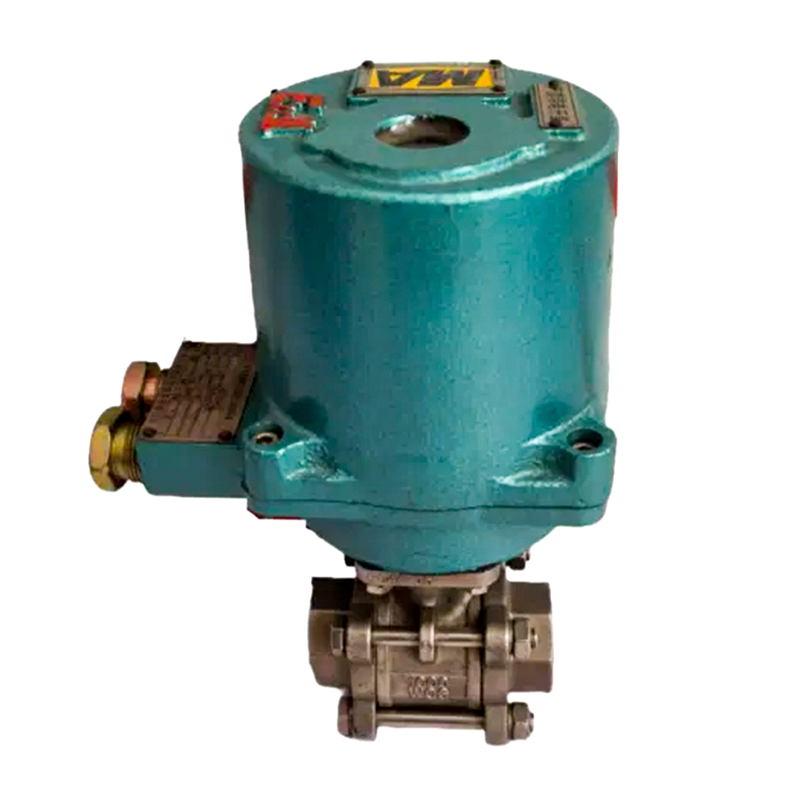

QMB Mining CREPITUS-probationem parva valvae Electric fabrica est meticumque ficti ficti pro rigorous postulat of coal industria applications. Hoc versatile actuator excellit in precise imperium pila valvulae, papilio valvulae et magis. Cum paribus cum summus pressura, parva-gentilitor specialized valvulae, id ensures perficientur in calculo meo ignem salute, pulvis suppressionem, et automation et vacuum pumps systems, inter jet et vacuo pumps systems, inter jet et vacuum pumps systems, inter jet et vacuo pumps systems, inter jet et vacuo exhauritur.
Nostrum QMB valvae electrica fabrica stat pro pacto consilium et luce constructione. Seamlessly integrating cum DS Systems, quod facilitatem efficient et reliable automatic imperium.
Pario
Available in variis generis: basic, intelligentes, CREPITUS-probationem basic et CREPITUS-probationem intelligentes, singulis tailored ad occursum propria operational necessitatibus.
Operantes environment et principalis technica condiciones
(I) Vox copia: Latin tribus-phase ac380v, 50Hz;
Nam flexibilitate, libitum potentia commeatus includit: AC400V, 415v, 660V et Dual of 50Hz vel 60Hz.
Item adaptabile pro uno-phase ac220v, 110v cum 50Hz et 60hz options.
Praeterea, sustinet DC potentia ad 24V, 48v et 84v.
(II) Ambientium temperatus: vexillum range of -20ºC ad 60ºC; extenditur range available a -40ºC ad 70ºC ad postulans conditionibus.
(III) Relativum humiditas: Efficientem operationem usque ad XCV% Umor XXV ° C, ensuring robust perficientur.Atadapts seamlllless various humiditas conditionibus.
(IV) Operantes environment: Ordinarius type sectis locis a periculosum et mordendo media;
CREPITUS-probationem Exemplar (Exdiibt4) disposito environments cum Iia et iib Gas Mixtures, Group T1-T4, cursus UT salutem.
(V) Protection Level: IP65, IP67, et Fusce IP68 ad auctus praesidio sub specialibus ordines.
(VI) Motor est machinatum pro Intermittendi Usus: Latin Operatio Tempus X minuta, extendable ad 15-30 minuta sub speciali conditionibus, cum classis F Volume pro diuturnitatem.
(VII) anti-corrosio coating: utilitas a summus temperatus electrostatic imbre de anti-corrosio epoxy plastic pulveris, offering robust diu-term praesidium.
(VIII) Main munus features intelligentes electrica actuators
Engineered cum Mechatronic Design, haec actuators sunt pacto et lightweight.
Incorporat digital integrated chip, tradens multifaceted functionality et praecisione.
Design exaltat non-MOLESTUS consilio, permittens modularis temperaturis et debugging via KNOBS aut ultrarubrum remotis, omnes sine foramen clausuram, quia velox, secure operationes.
Instructa absoluta encoder ad plaga displacement, ensuring valvae situ integritatem et fortis anti-intercessiones, cum alto accurate extenditur lifespan.
LCD Display available in utroque Seres et English, enhancing usability.
Features tutela munera ut peregrinatione terminum, torque tutela, armenti terrorem, overheat praesidio, signum defectum tutela, virtute phase damnum, et automatic tempus sequence disciplinam pro comprehensive tuto.
Intelligentes types encompent intelligentes switch, intelligentes temperatio, et provectus intelligentes versions, catering ad diversum imperium necessitates.
(IX) Intelligentes Switch Type input Signum: Accipit 24VDC Arteriam vel Level annuit pro Versatile integration.
Output signum: providet Nullam output cum contactus facultatem rated ad 5A pro 250vac vel 30vdc.
Output Situs Analog Signum: dabit 4-20ma ad precise feedback.
Intelligentes Regulatio Sperat Analog input annuit: 4-20ma enim seamless potestate.
Analog output signum: Matches input cum 4-20ma output.
Switch initus signum: compatible cum 24VDC pulsus vel gradu signum ad efficientem operationem.
Switching output signum: nostrum innovative actuator features a robust Relay output cum contactu rated capacitatem de 5a, 250VAC et 5a, 30Vdc, ensuring elit.
Basic Error: ≤1 - experientia praecisione et accurate cum basic errorem margine minus quam vel aequalis ad I. Technology praestigia exigerit potes numerare.
Nostrum provectus intelligentes genus est disposito ad elevat vestri operational capabilities. Hoc includit subsidium ESD ESD Prospera praesidio, seamless bus communicationis, intuitive bluetooth connectivity, et sophisticated wireless imperium, inter alia groundbreaking features.
QMB Electric Actuator Main Models & Characteres
| Model | Torque (N · M) | Diameter (M) | Celeritas Ratio | Output celeritate (R / min) | Open / Close Tempus (S): | Motricium Power (W) | Motor Currency (A) | Pondus (KG) |
| Qb3.5-1.25G | 35 | 11x11 | 46 | 1.25 | 12 | 10 | 0.6 | 8 |
| QMB5-1.25G | 50 | 11x11 | 46 | 1.25 | 12 | 15 | 0.6 | 8 |
| QMB9-0.85G | 90 | 28 | 46 | 0.85 | 18 | 40 | 1 | 20 |
| Qmb5-0.6g | 150 | 28 | 46 | 0.6 | 25 | 40 | 1 | 20 |
| Qmb25-0.6g | 250 | 28 | 46 | 0.6 | 25 | 60 | 1.2 | 20 |
QMB magnitudine et connexionem dimensiones

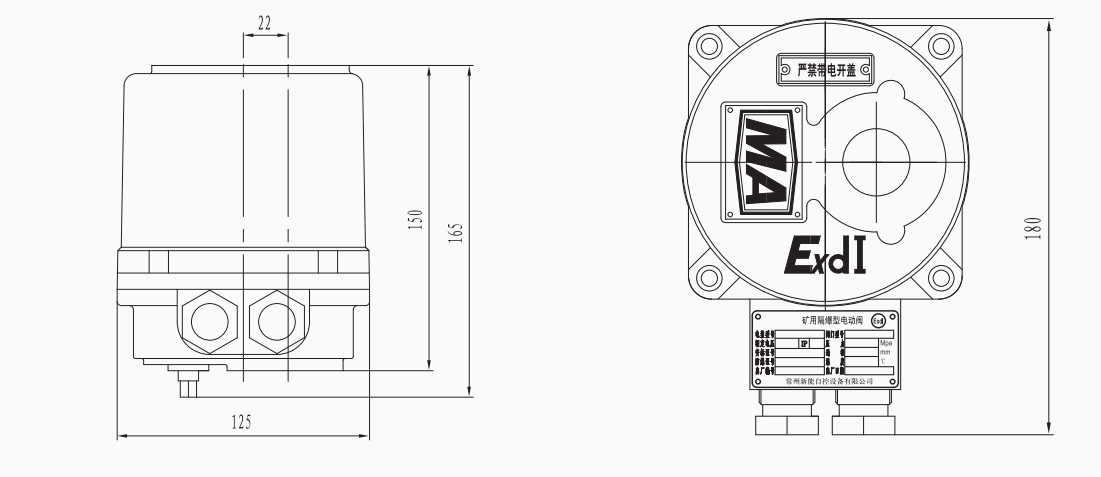

QMB3.5 / V external dimensiones
QMB9 / XV / XXV dimensiones externi

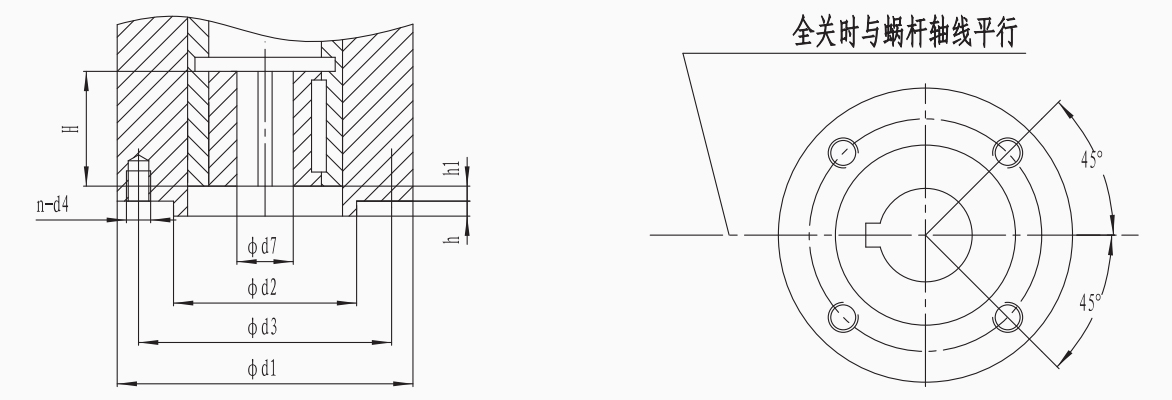

QMB LABIUM nexu dimensiones
QMB3.5 / V Connection Diagram
| Flange numerum | DENSO Model | D3 | n-D4 | D7 | H | H1 |
| F05 | QMB3.5 QMB5 | 50 | IV-M6 | XI × XI | 16 | 1 |
QMB9 / XV / XXV Connection Diagram
| Flange numerum | Electric installation Model | D1 | D2 (F8) | D3 | n-D4 | D7 | H | h | H1 | |
| Factory productio | Maximus | |||||||||
| F05 | QMB9 | 65 | 35 | 50 | IV-M6 | 28 | 40 | 3 | 3 | |
| F07 | QMB9 QMB15 QMB25 | 90 | 55 | 70 | IV-M8 | / | 28 | 40 | 3 | 3 |
| F10 | QMB25 | 125 | 70 | 102 | IV-M10 | / | 28 | 40 | 3 | 3 |
Nota: QMB9 / XV / XXV sunt omnes instructa cum F07 ut vexillum, cursus positivum compatibility et seamless integration pro necessitates.
