MZ Mining Electric Operificing CYMBALON

Adepto Quotes

Main Features et Applications

I) MZ Mining Electric porta CYMBALON est applicantur ad in life et exitus pipelines de aqua sentinam in subterraneis sentinam locus, et ibi sunt duo genera: split type et integrated genus:
Post esse in conjunction cum KXBC Mining CREPITUS-probationem CYMBALE Electric fabrica imperium arca archa, in split genus electrica porta valvae potest coniungi ad DCS system ad consequi
Automation potestate sub underround aqua lacus cubiculum in carbo metallis;
Integrated Electric porta Venit cum imperium system, quod potest switched et off aut remotius imperium in corpore, consequi remotis mutandi vel temperatio
Non additional imperium arca non requiritur.
II) Modbus, Profibus et alia bus communicationis potest configurari, cum CDLXXXV bus interface ad consequi notitia communicationis.
III) MZ Series Mining Electric Porta CYMBALON facile install cum nulla institutionem directionem requisita, bi directional signantes, convenient sustentationem, et longa vitam
IV) Quod existentium manual valvulae in carbones metalla potest esse directe convertitur in electrica valvulae ad augendae automation control non afficiens normalis productio de carbo mines

Signa supplicium

Consilio et vestibulum	GB / T 12221-2005 GB / T 12222-2005 GB / T 12224-2005 GB / T 12234-2007
Pipeline Connection	GB9113.1 ~ GB9113.4-2000
Inspectionem et temptationis	GB / T 13927-2008 JB / T9092-1999

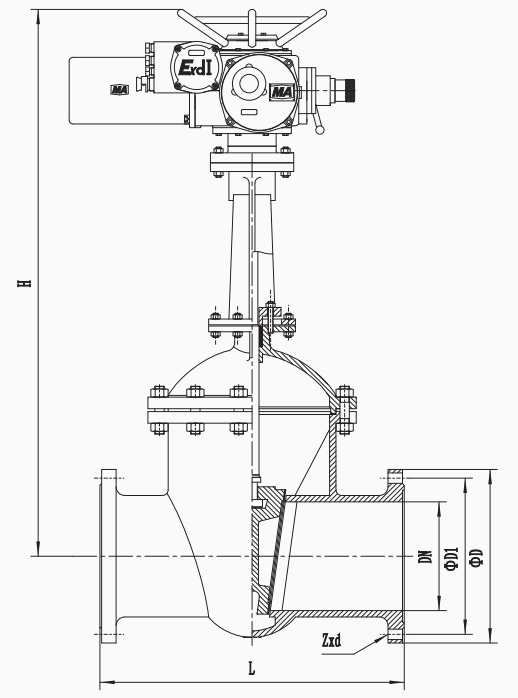

Structural Schematic Diagram

Electio mensa ad nexum magnitudinum et related methiculis CREPITUS probationem valvae electrica cogitationes

Mz941h-XVI Mining Electric porta CYMBALON

Pelagus dimensiones de valvae (mm)						Pelagus parametri de Mining CREPITUS-probationem Typus / Mining CREPITUS-probationem integrated CYMBALE Electric Fabrica
Dn	L	D	D1	Z × d	H	Exemplar specifications	Torque (N · M)	Celeritate (R / min)	Motricium Power (Kw)
50	250	160	125	IV × F18	615	ZB / ZBY10	100	24	0.25
65	265	180	145	IV × F18	625	ZB / ZBY15	150	24	0.37
80	280	195	160	VIII × F18	700	ZB / ZBY15	150	24	0.37
100	300	215	180	VIII × F18	760	ZB / ZBY20	200	24	0.55
125	325	245	210	VIII × F18	825	ZB / ZBY20	200	24	0.55
150	350	280	240	VIII × F23	920	ZB / ZBY30	300	24	0.75
200	400	335	295	XII × F23	1075	ZB / ZBY30	300	24	0.75
250	450	405	355	XII × F25	1265	ZB / Zby45	450	24	1.1
300	500	460	410	XII × F25	1480	ZB / ZBY60	600	24	1.5
350	550	520	470	XVI × F25	1660	ZB / Zby90	900	24	2.2
400	600	580	525	XVI × f30	1930	ZB / Zby90	900	24	2.2
450	650	640	585	XX × f30	2000	ZB / Zby120	1200	24	3

Mz941h-XXV Mining Electric porta CYMBALON

Pelagus dimensiones de valvae (mm)						Pelagus parametri de Mining CREPITUS-probationem Typus / Mining CREPITUS-probationem integrated CYMBALE Electric Fabrica
Dn	L	D	D1	Z × d	H	Exemplar specifications	Torque (N · M)	Celeritate (R / min)	Motricium Power (Kw)
50	250	160	125	IV × F18	625	ZB / ZBY10	100	24	0.25
65	265	180	145	VIII × F18	630	ZB / ZBY15	150	24	0.37
80	280	195	160	VIII × F18	710	ZB / ZBY15	150	24	0.37
100	300	230	190	VIII × F23	745	ZB / ZBY20	200	24	0.55
125	325	270	220	VIII × F25	860	ZB / ZBY20	200	24	0.55
150	350	300	250	VIII × F25	925	ZB / ZBY30	300	24	0.75
200	400	360	310	XII × F25	1155	ZB / ZBY30	300	24	0.75
250	450	425	370	XII × f30	1360	ZB / Zby45	450	24	1.1
300	500	485	430	XVI × f30	1465	ZB / ZBY60	600	24	1.5
350	550	550	490	XVI × F34	1670	ZB / Zby90	900	24	2.2
400	600	610	550	XVI × F34	1930	ZB / Zby120	1200	24	3.0
450	650	660	600	XX × F34	2150	ZB / Zby120	1200	24	3.0

Mz941h-XL Mining Electric porta CYMBALON

Pelagus dimensiones de valvae (mm)						Pelagus parametri de Mining CREPITUS-probationem Typus / Mining CREPITUS-probationem integrated CYMBALE Electric Fabrica
Dn	L	D	D1	Z × d	H	Exemplar specifications	Torque (N · M)	Celeritate (R / min)	Motricium Power (Kw)
50	250	160	125	IV × F18	685	ZB / ZBY10	100	24	0.25
65	280	180	145	VIII × F18	725	ZB / ZBY15	150	24	0.37
80	310	195	160	VIII × F18	755	ZB / ZBY15	150	24	0.37
100	350	230	190	VIII × F18	805	ZB / ZBY20	200	24	0.55
125	400	270	220	VIII × F25	840	ZB / ZBY20	200	24	0.55
150	450	300	250	VIII × F25	960	ZB / ZBY30	300	24	0.75
200	550	375	320	XII × f30	1100	ZB / Zby45	450	24	1.1
250	650	445	385	XII × F34	1440	ZB / Zby45	450	24	1.1
300	750	510	450	XVI × F34	1500	ZB / ZBY60	600	24	1.5
350	850	570	510	XVI × F34	1750	ZB / Zby120	1200	24	3.0
400	950	655	585	XVI × F41	1800	Zb180	1800	24	5.5

Mz941h-LXIV Mining Electric porta CYMBALON

Pelagus dimensiones de valvae (mm)						Pelagus parametri de Mining CREPITUS-probationem Typus / Mining CREPITUS-probationem integrated CYMBALE Electric Fabrica
Dn	L	D	D1	Z × d	H	Exemplar specifications	Torque (N · M)	Celeritate (R / min)	Motricium Power (Kw)
50	250	175	135	IV × F23	680	ZB / ZBY10	100	24	0.25
65	280	200	160	VIII × F23	700	ZB / ZBY15	150	24	0.37
80	310	210	170	VIII × F23	725	ZB / ZBY20	200	24	0.55
100	350	250	200	VIII × F25	805	ZB / ZBY20	200	24	0.55
125	400	295	240	VIII × f30	840	ZB / ZBY30	300	24	0.75
150	450	340	280	VIII × F34	960	ZB / ZBY30	300	24	0.75
200	550	405	345	XII × F34	1100	ZB / ZBY60	600	24	1.5
250	650	470	400	XII × F41	1350	ZB / Zby90	900	24	2.2
300	750	530	460	XVI × F41	1650	ZB / Zby90	900	24	2.2
350	850	595	525	XVI × F41	1960	ZB / Zby120	1200	24	3.0
400	950	670	585	XVI × F48	2040	ZB180	1800	24	5.5

Mz941h-C Mining Electric porta CYMBALON

Pelagus dimensiones de valvae (mm)						Pelagus parametri de Mining CREPITUS-probationem Typus / Mining CREPITUS-probationem integrated CYMBALE Electric Fabrica
Dn	L	D	D1	Z × d	H	Exemplar specifications	Torque (N · M)	Celeritate (R / min)	Motricium Power (Kw)
50	250	195	145	IV × F25	685	ZB / ZBY15	150	24	0.37
65	280	220	170	VIII × F25	725	ZB / ZBY20	200	24	0.55
80	310	230	180	VIII × F25	760	ZB / ZBY20	200	24	0.55
100	350	265	210	VIII × f30	830	ZB / ZBY30	300	24	0.75
125	400	310	250	VIII × F34	970	ZB / ZBY30	300	24	0.75
150	450	350	290	XII × F34	1020	ZB / Zby45	450	24	1.1
200	550	430	360	XII × F41	1150	ZB / ZBY60	600	24	1.5
250	650	500	430	XII × F41	1290	ZB / Zby90	900	24	2.2
300	750	585	500	XVI × F48	1530	ZB / Zby120	1200	24	3.0
350	850	655	560	XVI × F54	1840	ZB250	2500	24	7.5
400	950	715	620	XVI × F54	2321	Zb350	3500	24	11

Mz941h-CLX Mining Electric porta CYMBALON

Pelagus dimensiones de valvae (mm)						Pelagus parametri de Mining CREPITUS-probationem Typus / Mining CREPITUS-probationem integrated CYMBALE Electric Fabrica
Dn	L	D	D1	Z × d	H	Exemplar specifications	Torque (N · M)	Celeritate (R / min)	Motricium Power (Kw)
50	300	215	165	VIII × F25	730	ZB / ZBY20	200	24	0.55
65	340	245	190	VIII × f30	820	ZB / ZBY20	200	24	0.55
80	390	260	205	VIII × f30	860	ZB / ZBY30	300	24	0.75
100	450	300	240	VIII × F34	920	ZB / Zby45	450	24	1.1
125	525	355	285	VIII × F41	1010	ZB / Zby45	450	24	1.1
150	600	390	318	XII × F41	1070	ZB / ZBY60	600	24	1.5
200	750	480	400	XII × F48	1190	ZB / Zby90	900	24	2.2
250	850	580	485	XII × F54	2300	ZB / Zby120	1200	24	3.0
300	950	665	570	XVI × F54	2450	ZB180	1800	24	5.5
