Mfd Mining VENTILATIO Puthfly CYMBALON

Adepto Quotes

Main Features et Applications

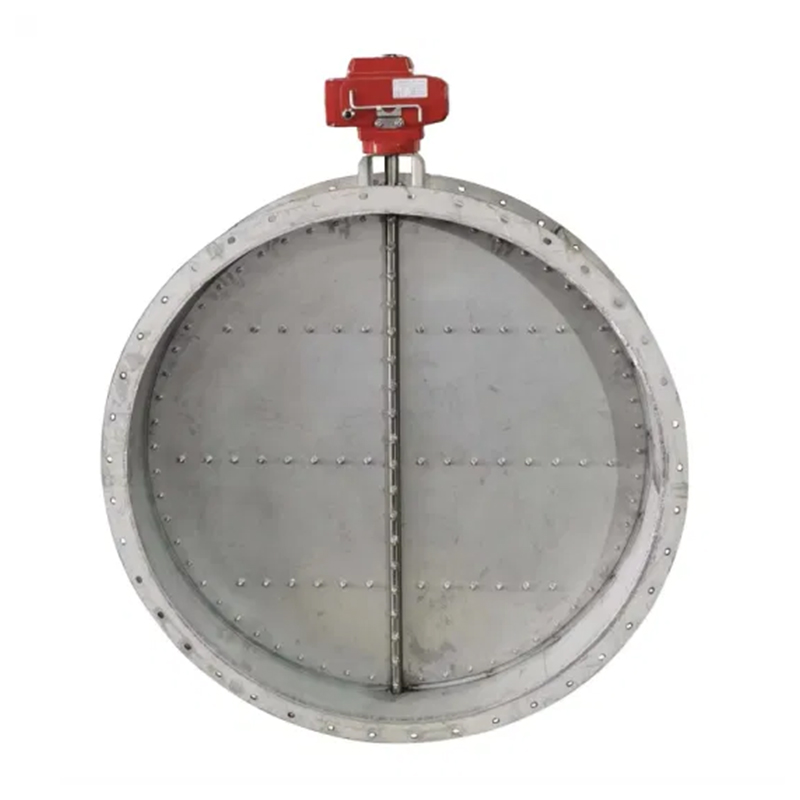

Mfd Mining VENTILATIO Puthfly Valvulae sunt maxime in Pipeline systems ut calculus mea evacuatione, pulvis remotionem, et environmental praesidio engineering ad moderari et interficiam off in Gas Media in Pipelines secundum diversis significationibus; Habet habet rationem rationabile structuram, damnum resistentia, humilis fluxus resistentia, minimal lacus, facilis operationem, et diu muneris vitae.

Classification et parametri

Mining VENTILIBLIBLIATIO Puthfly Valvulae sunt per imperium genus, comprehendo electrica evacuatione papilio valvulae et pneumatic evacuatione papilio valvulae,
I) Sunt duo genera electrica evacuatione papilio valvulae ad metalla: split genus et integrated genus
* Post esse in conjunction cum KXBC Mining CREPITUS-Proba CYMBALE Electric fabrica imperium arca archa, in split type electrica evacuatione papilio valvae potest coniuncta ad DCS System
Intellego automated imperium Gas pipelines;
* Integrated Electric VENTILIBLIA PAPILLUS CYMBALE venit cum imperium system, quod potest switched in quod off aut remote in corpore ad consequi remotis mutandi vel temperatio
Imperium sine opus separatum imperium arca.
* Modbus, profbus et alia bus communicationis potest configurari, cum CDLXXXV bus interface ad consequi notitia communicationis.
* Main perficientur et parametri electrica evacuatione papfus valvae:

Electric uentilandam papfus valvae exemplar	Mfd9b41w
Dn (mm)	DN100 ~ (IV)
Medium et temperatus	Aeris, Gas, quibus Gas mixturis; ≤300 ℃
Nominal pressura (MPa)	Pn0.1mpa
Leakage Rate	≤1%
Voltage	CCCLXXX / 660v

Structural Schematic Diagram

Classification et parametri

Et fodienda pneumatic evacuatione papillam valvae applicantur ad VENTILATIO pipelines quod requirere velox ostium et claudendo, et potest consequi ieiunium remotis switching et temperatio potestate.
* Main perficientur et parametri pneumaticae evacuatione papilio valvae.

Pneumaticae ventilari papfus valvae exemplar	Mfd6b41w
DN (mm)	DN100 ~ (IV)
Medium et temperatus	Aeris, Gas, quibus Gas mixturis; ≤300 ℃
Nominal pressura (MPa)	0.01 (Test pressura 0.02)
Leakage Rate	≤1%
Pneumatic VENTILATIO PAPFLY valvulae sunt available in potestate forma	Duplex agens, una-agens
Pneumaticae ventilari papfus valvae libitum function	Switching genus, regulating type
Solenoid / Position Voltage	AC24V, DC24V, Ac110V, AC220V
Cogo Aeris pressura	2Bar ~ 8Bar

Structural Schematic Diagram

Electio mensam ad nexum magnitudinum et related methicle CREPITUS-probationem valvae electrica cogitationes

Pelagus dimensiones de valvulae					Pelagus parametri et metalla CREPITUS-probationem type / Mining CREPITUS-probationem integrated electrica fabrica
DN	L	D	D1	N-φd	Mining CREPITUS-probationem CYMBALON Electric fabrica Model	Voltage (V)	Power (KW)
500	220	645	600	20-22	QB / qby30	380/660	0.18
600	220	755	705	20-26	QB / QBY40	380/660	0.18
700	240	860	810	24-26	QB / qby60	380/660	0.18
800	240	975	920	24-30	QB / qby60	380/660	0.18
900	260	1075	1020	24-30	QB / qby90	380/660	0.25
1000	260	1175	1120	28-30	QB / qby90	380/660	0.25
1100	260	1275	1220	28-30	QB / qby90	380/660	0.25
1200	280	1375	1320	32-30	QB / qby120	380/660	0.37
1300	280	1475	1420	32-30	ZB / ZBY15	380/660	0.37
1400	300	1575	1520	36-30	ZB / ZBY15	380/660	0.37
1500	300	1690	1630	36-30	ZB / ZBY15	380/660	0.37
1600	320	1790	1730	40-30	ZB / ZBY15	380/660	0.37
1700	320	1890	1830	40-30	ZB / ZBY20	380/660	0.55
1800	340	1990	1930	44-30	ZB / ZBY20	380/660	0.55
1900	340	2090	2030	48-30	ZB / ZBY20	380/660	0.55
2000	360	2190	2130	48-30	ZB / ZBY20	380/660	0.55
2100	360	2290	2230	52-33	ZB / ZBY30	380/660	0.75
2200	380	2405	2340	52-33	ZB / ZBY30	380/660	0.75
2300	380	2505	2440	56-33	ZB / ZBY30	380/660	0.75
2400	400	2605	2540	56-33	ZB / ZBY30	380/660	0.75
2500	400	2706	2640	60-33	ZB / ZBY30	380/660	0.75
2600	420	2805	2740	60-33	ZB / Zby45	380/660	1.1
2800	440	3030	2960	64-36	ZB / Zby45	380/660	1.1
3000	460	3230	3160	68-36	ZB / Zby45	380/660	1.1
3200	480	3430	3360	72-36	ZB / Zby45	380/660	1.1
3400	500	3630	3560	76-36	ZB / Zby45	380/660	1.1
3600	520	3840	3770	80-36	ZB / Zby45	380/660	1.1
3800	540	4045	3970	80-39	ZB / ZBY60	380/660	1.5
4000	560	4245	4170	84-39	ZB / ZBY60	380/660	1.5
