Main Features et Applications

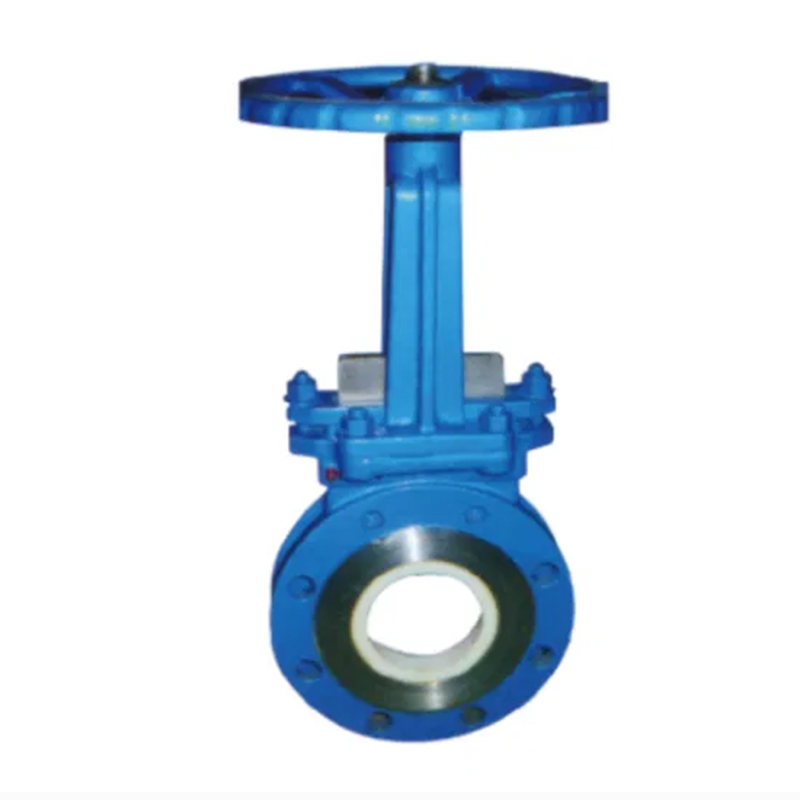

Mpz Mining Electric Cultro porta CYMBALON (Slurry CYMBALON) est maxime usus est ad calculus praeparatio et lavare in calculus metallis. Parvus altiore volumine, lux pondus, humilis fluxus resistentia et Fibulae genus structuram.
Potest ne depositionem media intra valvae corpore. Secundum diversas overcurrent media et valvae corpus signatum cum rubber sigillum et Alloy sigillum. Si usus particulata materia ut carbones pulveris, a Ceramic ferro porta valvae bono gerunt resistentia potest electus.
Mpz series Mining Electric cultro porta CYMBALON habet duo genera: Scinditur type et integrated genus:

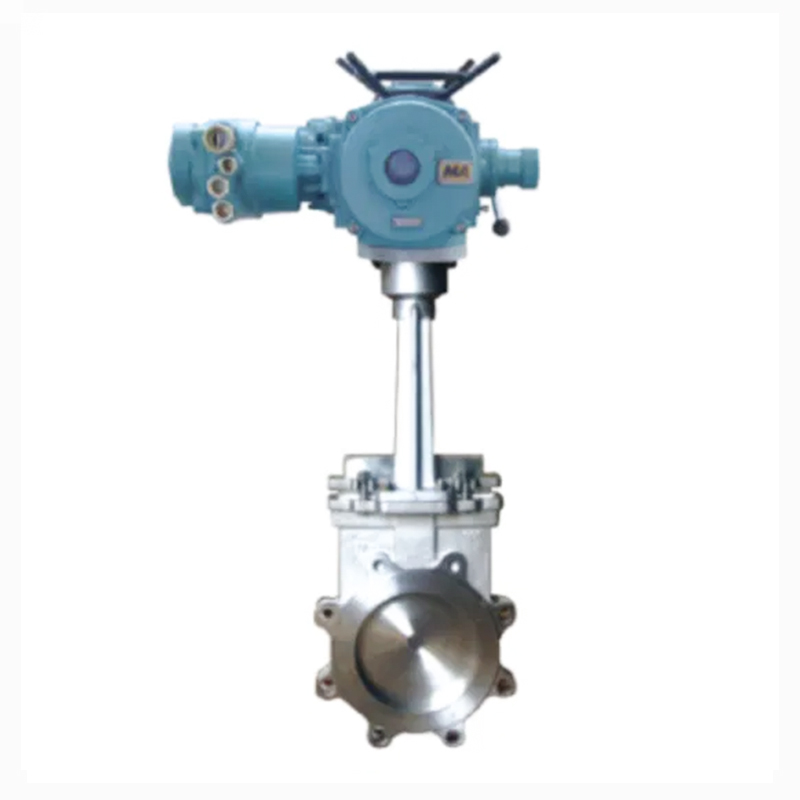

Post esse in conjunction cum KXBC Mining CREPITUS-probationem valvae Electric fabrica imperium arca archa, in split genus electrica cultro porta valvae potest coniungi ad DCS system ad consequi automatic potestate ad subterraneo aqua laoreet locus in calculus mines;

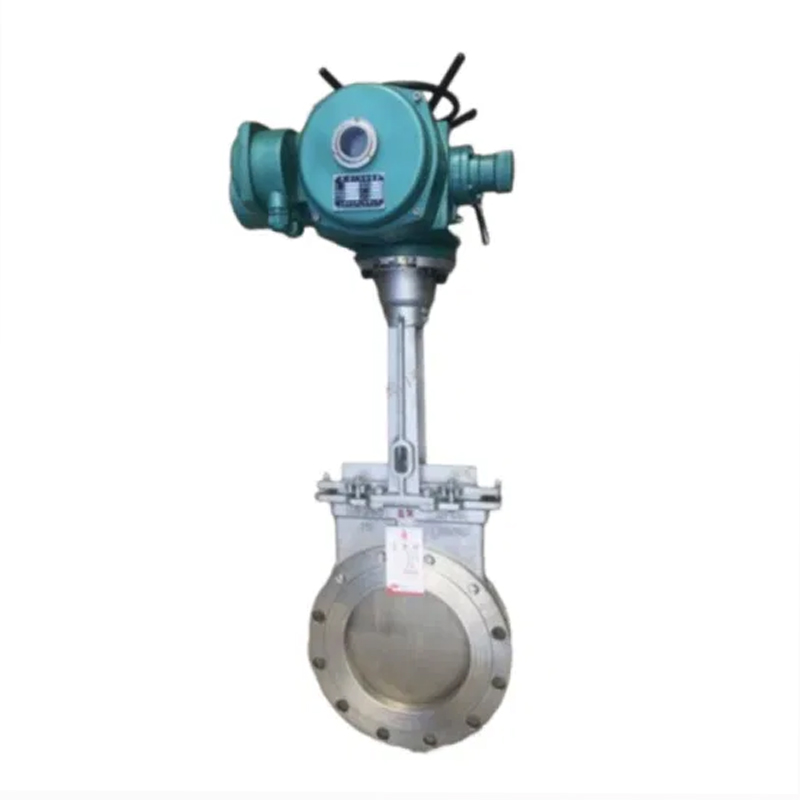

Integrated electrica ferro porta valvae venit cum imperium system, quod potest switched in quod off aut remotius regitur in corpore, consequi remote control et off aut temperatio sine necessitate separatum imperium arca.
Modbus, Profibus et alia bus communicationis potest configurari, cum CDLXXXV bus interface ad consequi notitia communicationis.
Effectus signa et principalis perficientur cubits
| Consilio et vestibulum | GB / T 12221-2005 GB / T 1222-2005 JB / T 12238-2008 |
| Pipeline Connection | GB9113.1 ~ GB9113.4-2000 |
| Inspectionem et temptationis | GB / T 13927-2008 JB / T9092-1999 |

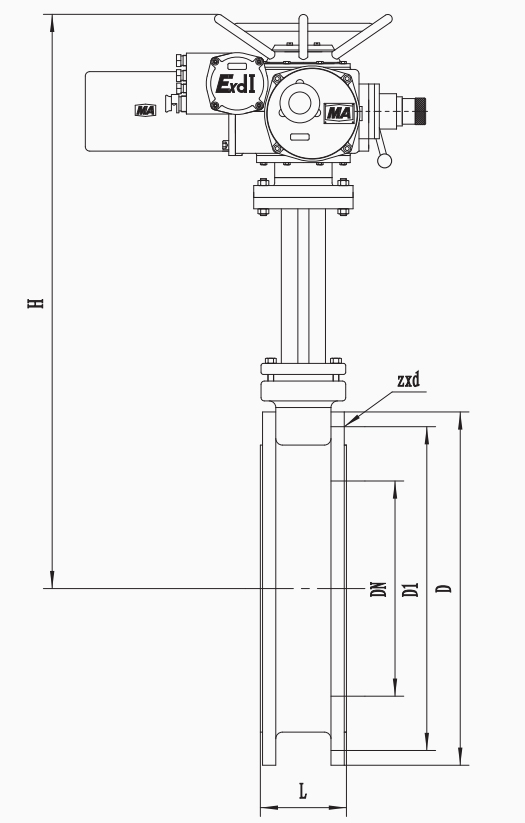

Structural Schematic Diagram
Electio mensa ad nexum magnitudinum et related methiculis CREPITUS probationem valvae electrica cogitationes
| Pelagus dimensiones de valvae (mm) | Pelagus parametri ex Mining CREPITUS-probationem valvae Electric Fabrica | |||||||||
| Dn | D | D1 | Zxd | L | H | Exemplar specifications | Torque (N · M) | Celeritate (R / min) | Motricium Power (Kw) | |
| 0.6 | 1.0 | |||||||||
| 80 | 200 | 160 | 6x18 | 40 | 50 | 720 | ZB / ZBY15 | 150 | 24 | 0.37 |
| 100 | 220 | 180 | 6x18 | 50 | 50 | 740 | ZB / ZBY15 | 150 | 24 | 0.37 |
| 125 | 250 | 210 | 6x18 | 50 | 50 | 780 | ZB / ZBY20 | 200 | 24 | 0.55 |
| 150 | 285 | 240 | 6x22 | 50 | 60 | 840 | ZB / ZBY20 | 200 | 24 | 0.55 |
| 200 | 340 | 295 | 6x22 | 60 | 60 | 940 | ZB / ZBY30 | 300 | 24 | 0.75 |
| 250 | 395 | 350 | 8x22 | 60 | 70 | 1140 | ZB / ZBY30 | 300 | 24 | 0.75 |
| 300 | 445 | 445 | 8x22 | 70 | 80 | 1295 | ZB / Zby45 | 450 | 24 | 1.1 |
| 350 | 505 | 505 | 10x22 | 80 | 92 | 1450 | ZB / ZBY60 | 600 | 24 | 1.5 |
| 400 | 565 | 565 | 10x26 | 80 | 120 | 1650 | ZB / Zby90 | 900 | 24 | 2.2 |
| 450 | 615 | 615 | 12x26 | 90 | 125 | 1890 | ZB / Zby120 | 1200 | 24 | 3 |
| 500 | 670 | 670 | 12x26 | 90 | 130 | 2140 | ZB180 | 1800 | 24 | 5.5 |
Umbra: 0.6MPA, 1.0MPA, 1.6MPA3
