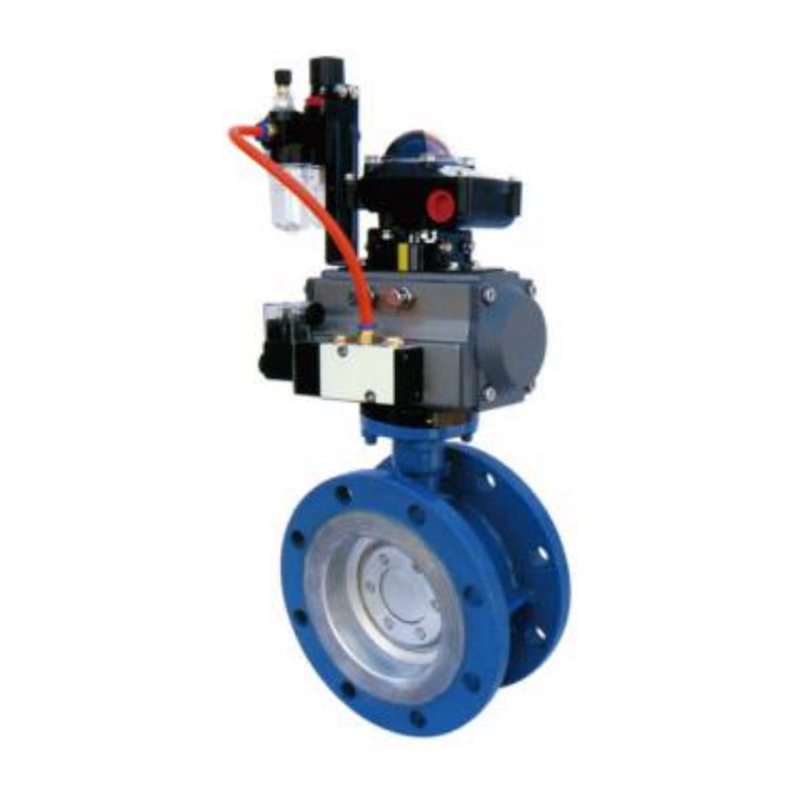

D641H Pneumatic LABIS Type Durum Sigillum Papfly CYMBALON

Adepto Quotes

Brevis

D641h pneumatic Lingue durum sigillum papilio valvae adoptat trium eccentricum sigillum structuram consilio. Post stricte calculum, in "" - informibus signantes annulum habet al non friction cum papilio laminam, solvendo problema de traditional eccentrici de 0 ad X gradus. Achieves effectum separationis signantes superficies superficies papilio laminam ad momentum aperire et claudendo, et signantes ad momentum claudendo contactus, consequi ad metam extendendorum vitae et signa perficientur.
Et signantes superficies papilio laminam factum est de welded Cobalt fundatur durum stode, quod est gerunt, repugnans. Magna-amplitudo papfus laminam adoptat a spheara frame mechanism, quod habet ad altum vires, magna overcurrent area et humilis fluxus resistentia. Et mechanism est unicum, et "switch" potest compleri simpliciter rotating valvae derivantur XC gradus. Ideo durum signati papilio valvulae late in pipelines in mordacis media ut metallurgy, electricae, PETROLEUM, chemical, aere, Gas, combustable temperaturis ≤ CDXXV ℃, sicut bonum fabulare ≤ et cutting fluidorum. Et productum obsequitur cum National GBT13927-92 CYMBALONALIS pressura test vexillum.

Technica modularis

Pneumatica Actuator libitum pluma	Duplex agens, una-agens
Pneumatic Actuators sunt available in varietate models	In series, AW Series
Solenoidal Voltage	Ac110V, AC220V, AC24V, DC24V
Cogo Aeris pressura	2BAR-8Bar
Nominis diameter	Dn50mm ~ dn1200mm
Nominis pressura	Pn1.0mpa, pn2.5mpa
Applicabiles temperatus	-30 ~ CDXXV ℃
Nexus	Flagy Type
Corporis materia	Carbon ferro, immaculatam ferro
Misc Material	Carbon Steel, immaculatam ferro, Alloy ferro, etc.
Sedes lining	Tungsten Carbide, Tungsten Carbide, Nickel Alloy, Graphite compositum, PTFFe
Applicabiles	Aqua, vapor, oleum, infirma mordax media, etc.

Principalis mensam dimensionem

Dn (M)	1.0					1.6
Dn (M)	L	H	D	D1	N-φd	H	L	D	D1	N-φd
50	43	85	125	100	IV-φ18	43	85	125	100	IV-φ18
65	46	95	145	120	IV-φ18	46	95	145	120	IV-φ18
80	49	110	160	135	IV-φ18	64	110	160	135	VIII-φ18
100	56	122	180	155	VIII-φ18	64	122	180	155	VIII-φ18
125	64	138	210	185	VIII-φ18	70	138	210	185	VIII-φ18
150	70	158	240	210	VIII-φ22	76	158	240	210	VIII-φ22
200	71	188	295	265	VIII-φ22	89	188	295	265	XII, φ22
250	76	224	350	320	XII, φ22	114	224	350	320	XII, φ26
300	83	254	400	368	XII, φ22	114	254	400	368	XII, φ26
350	92	288	460	428	XVI, φ22	127	288	460	428	XVI, φ26
400	102	320	515	482	XVI, φ26	140	320	515	482	XVI, φ30
450	114	350	565	532	XX, φ26	152	350	565	532	XX, φ30
500	127	388	620	585	XX, φ26	152	388	620	585	XX-φ33
600	154	440	725	685	XX, φ30	178	440	725	685	XX, φ36
700	165	488	840	800	XXIV, φ30	229	488	840	800	XXIV, φ30
800	190	572	950	905	XXIV, φ33	241	572	950	905	XXIV, φ39
900	203	628	1050	1005	XXVIII, φ33	241	628	1050	1005	XXVIII, φ39
1000	216	698	1160	1115	XXVIII, φ36	300	698	1160	1115	XXVIII, φ42
1200	254	810	1380	1325	XXXII-φ39	360	810	1380	1325	XXXII-φ48
