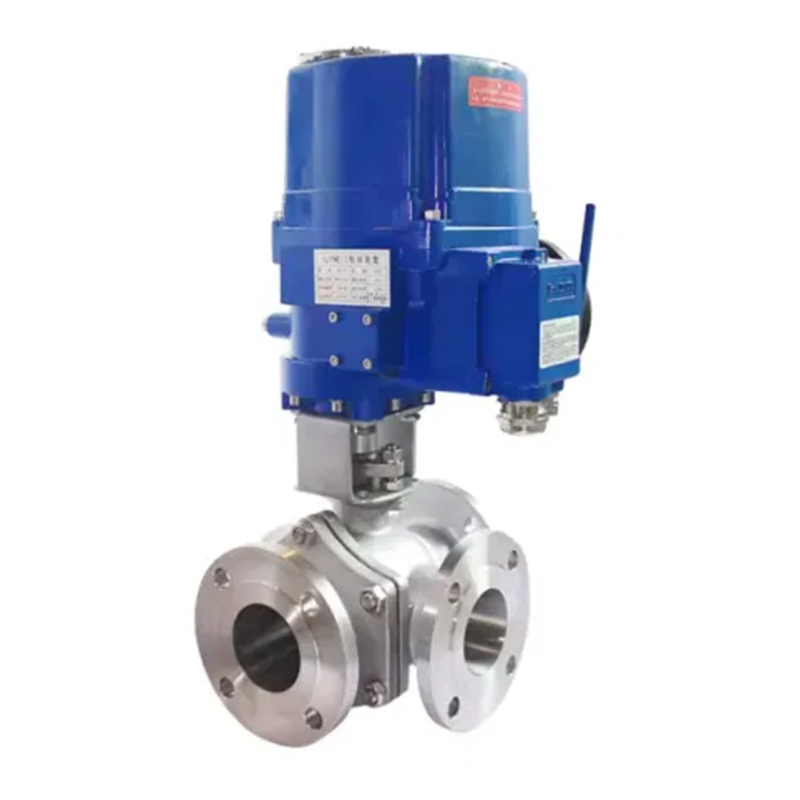

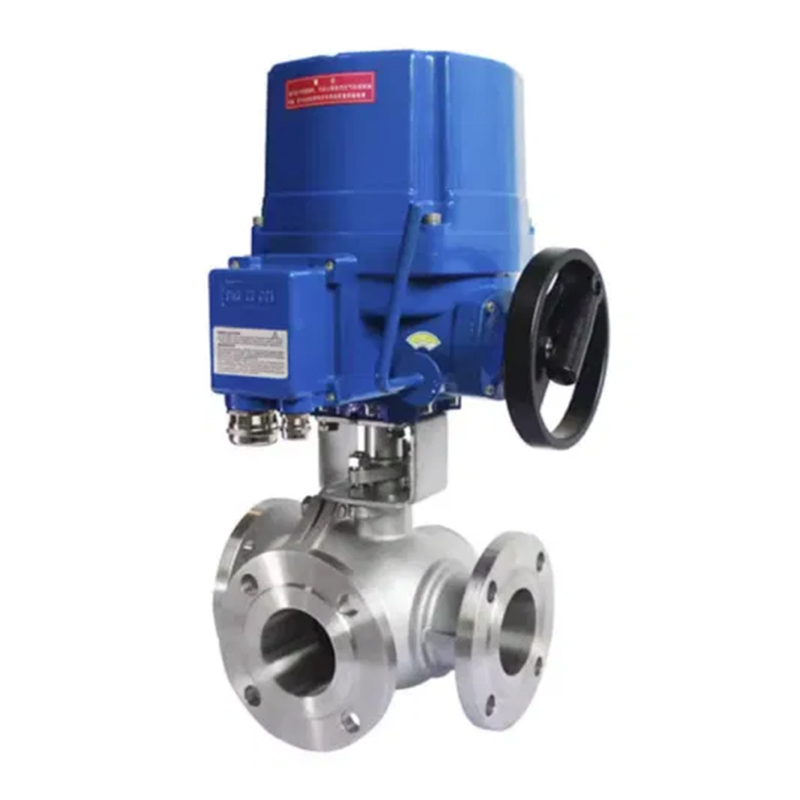

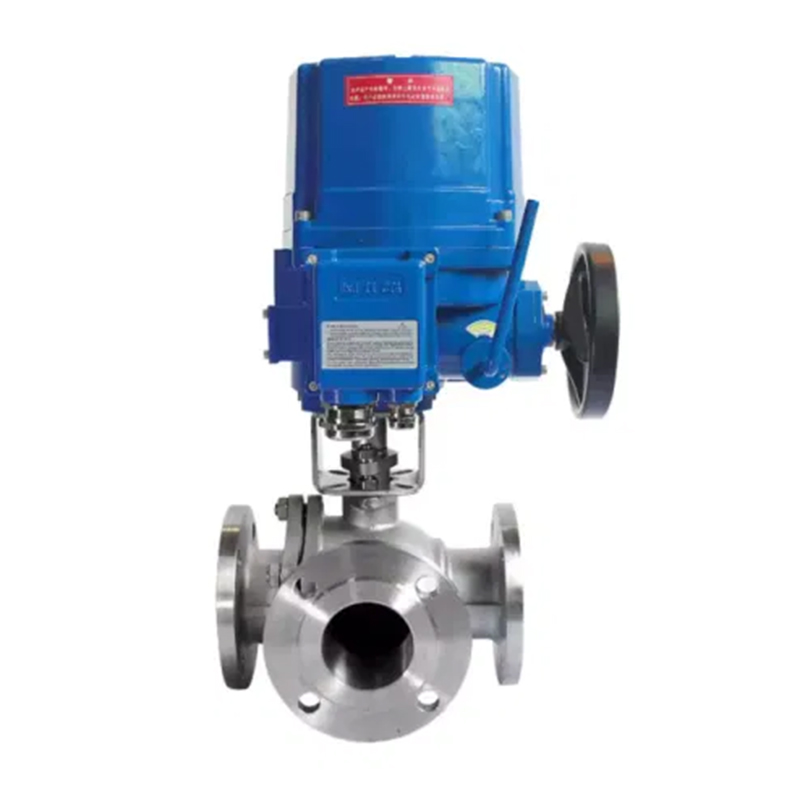

Q944 / 45f Electric Tres-via Flange Pila valvae
Q944 / 45f Electric Tres-via Flange Pila valvae
Q944 / 45f Electric Tres-via Flange Pila valvae
Q944 / 45f Electric Tres-via Flange Pila valvae
Q944 / 45f Electric Tres-via Flange Pila valvae
Q944 / 45f Electric Tres-via Flange Pila valvae
Q944 / 45f Electric Tres-via Flange Pila valvae
Q944 / 45f Electric Tres-via Flange Pila valvae

Q944 / 45f Electric Tres-via Flange Pila valvae

Adepto Quotes
PREV：Q611F Pneumatic Flat Ball CYMBALONDEINDE：Q941F Electric Pila valvae
  • Parameter
  • Contact Us

  • Brevis

    In Q944 / 45f Electric tres-via LAGE Pila valvae potest esse l-informiBus vel T informibus. Et l-informibus (Q944F) Tres-modo pila valvae adhibetur ad switching fluxus directionem medii et potest coniungere duo perpendicularis channels; T informibus (Q945F) Tres-modo pila valvae adhibetur ad medium distinguitur, bus, et influunt directionem commutatione. A T informibus Tee can iungo tria channels ad invicem vel coniungere duo ex illis. Electric tres-modo pila valvulae plerumque adopt a cathedra structuram, sed potest capere quatuor sedem structura secundum user requisita. Late applicabiles ad switching fluxus directionem media et avertens aut miscentes fluidorum in Pipeline systems talis ut aqua, petrochemicals, metallurgy, metalla, textiles, industria, characterma, fodiendis, textiles, industria, chartam, cibum, ferro, etc.


    Technica modularis

    Electric Actuator Libitum Features Switching, integralis, adjusting, intelligentes
    Electric Actuators sunt available in varietate models Q, DQ, QM, QC, AKQ series, magna diametri libitum Z Series, AK Series
    Voltage AC220V, Ac110V, AC380, DC12V, DC24V, DC110V
    Nominis diameter Dn15mm ~ dn200mm
    Nominis pressura Pn1.0mpa ~ pn1.6mpa
    Applicabiles temperatus PTFE: -30- CXX ° C PPL: ≤350 ° C Metal Sigillum: ≤450 ° C
    Nexus Flange
    Corporis materia Steel, CCCIV, CCCXVI, 316L
    Misc Material 304,316,316L
    Sedes lining Ptfe, ppl, metallum signacula
    Applicabiles Aqua, PETROLEUM, acida, Viscosis fluidorum, slurry media, etc.


    Structural DIAGRAM Electric Tres-via LAGE Pila valvae


    Principalis mensam dimensionem

    DN (mm) H L L1 D D1 D2 b
    15 53 150 75 95 65 46 14
    20 58.5 160 75 105 75 56 16
    25 70 180 90 115 85 65 16
    32 77.5 200 100 140 100 76 18
    40 86.5 220 110 150 110 84 18
    50 92 240 120 165 125 99 20
    65 107 260 130 185 145 118 20
    80 119 280 140 200 160 132 20
    100 150 320 160 220 180 156 22
    125 200 380 190 250 210 184 22
    150 240 440 220 285 240 211 24
    200 300 550 275 340 295 266 24
