Q941F Electric Pila valvae

Adepto Quotes

Brevis

Et Q941F Electric Flange Pila valvae habet idem XC gradus gyrationis elevatio actio, cum circularis per-foraminis vel alveo transit per suum axem. Ratio sphaerarum superficiem ad channel portum talis ut cum pila gyrari XC gradus, ut omnes praesentem sphaericum superficiem ad longo et exitus, ita incidit fluxus.
Electric Flange pila valvulae solum requirere XC gradus gyrationis et parva gyratorius torque prope arcte. Omnino valvae corpus cavum praebet humilitatem resistentia et recta ad medium. Est plerumque crediderunt quod pila valvulae apta directe foramen et claudendo, sed in annis, pila valvulae fuisse disposito et throttling et influunt imperium functions. Pelagus characteres pila valvulae eorum pacto structuram, facile operationem et sustentationem, idoneam generalis operationem instrumentis ut aqua, solvents, acida, et naturalis ut oxygeni, ut in dura operantes conditionibus ut oxygeni, et duri operantes condiciones ut oxygeni, et duri operantes condiciones ut oxygeni, ut in dura condiciones, ut et Media peroxide, methane Ethylene et. CYMBALE corpus pila valvae esse integrale vel modularis.

Technica modularis

Electric Actuator Libitum Features	Switching, integralis, adjusting, intelligentes
Electric Actuators sunt available in varietate models	Q, DQ, QM, QC, AKQ series, magna diametri libitum Z Series, AK Series
Voltage	AC220V, Ac110V, AC380, DC12V, DC24V, DC110V
Nominis diameter	Dn15mm ~ dn200mm
Nominis pressura	Pn1.0mpa ~ pn2.5mpa
Applicabiles temperatus	Ptee: -30- CXX ° C Ppl, ≤ CCCL ° C Metal Sigillum, ≤ CDL ° C
Nexus	Flagy Type
Corporis materia	Ferrum, cast ferro, CCCIV, CCCXVI, 316L
Misc Material	304,316,316L
Sedes lining	Ptee, ppl, metallum sigillis
Applicabiles	Aqua, PETROLEUM, acida, Viscosis fluidorum, slurry media, etc.

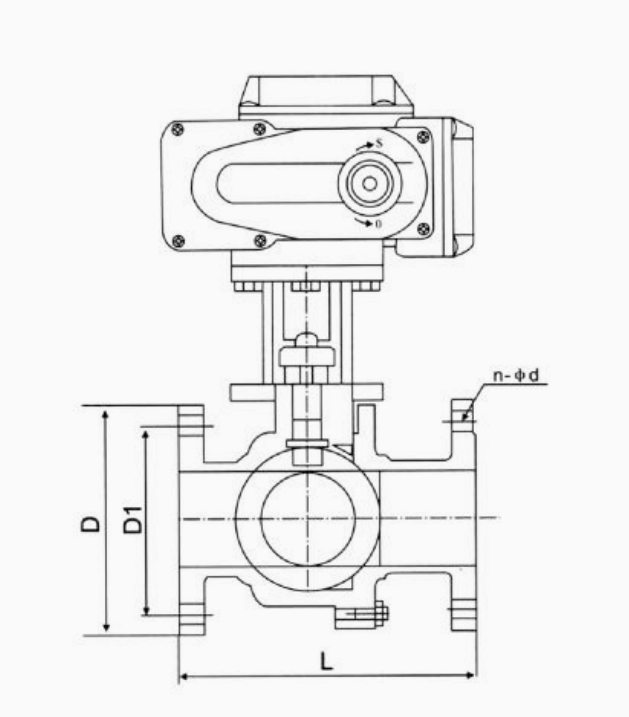

Structural Diagram Electric Flange Pila valvae

Principalis mensam dimensionem

Dn (M)	1.0MPA				1.6MPA				2.5MPA				4.0MPA
Dn (M)	L	D	D1	N-φd	L	D	D1	N-φd	L	D	D1	N-φd	L	D	D1	N-φd
15	130	95	65	IV-φ14	130	95	65	IV-φ14	130	95	65	IV-φ14	130	95	65	IV-φ14
20	140	105	75	IV-φ14	140	105	75	IV-φ14	140	105	75	IV-φ14	140	105	75	IV-φ14
25	150	115	85	IV-φ14	150	115	85	IV-φ14	150	115	85	IV-φ14	150	115	85	IV-φ14
32	165	135	100	IV-φ18	165	135	100	IV-φ18	165	135	100	IV-φ18	180	135	100	IV-φ18
40	180	145	110	IV-φ18	180	145	110	IV-φ18	180	145	110	IV-φ18	200	145	110	IV-φ18
50	200	160	125	IV-φ18	200	160	125	IV-φ18	200	160	125	IV-φ18	220	160	125	IV-φ18
65	220	180	145	IV-φ18	220	180	145	IV-φ18	220	180	145	VIII-φ18	250	180	145	VIII-φ18
80	250	195	160	IV-φ18	250	195	160	VIII-φ18	250	195	160	VIII-φ18	280	195	160	VIII-φ18
100	280	215	180	VIII-φ18	280	215	180	VIII-φ18	280	230	190	VIII-φ23	320	230	190	VIII-φ23
125	320	245	210	VIII-φ18	320	245	210	VIII-φ18	320	270	220	VIII-φ25	400	270	220	VIII-φ25
150	360	280	240	VIII-φ23	360	280	240	VIII-φ23	360	300	250	VIII-φ25	400	300	250	VIII-φ25
200	400	335	295	VIII-φ23	400	335	295	XII, φ23	400	360	310	XII, φ25	502	375	310	XII, φ30
