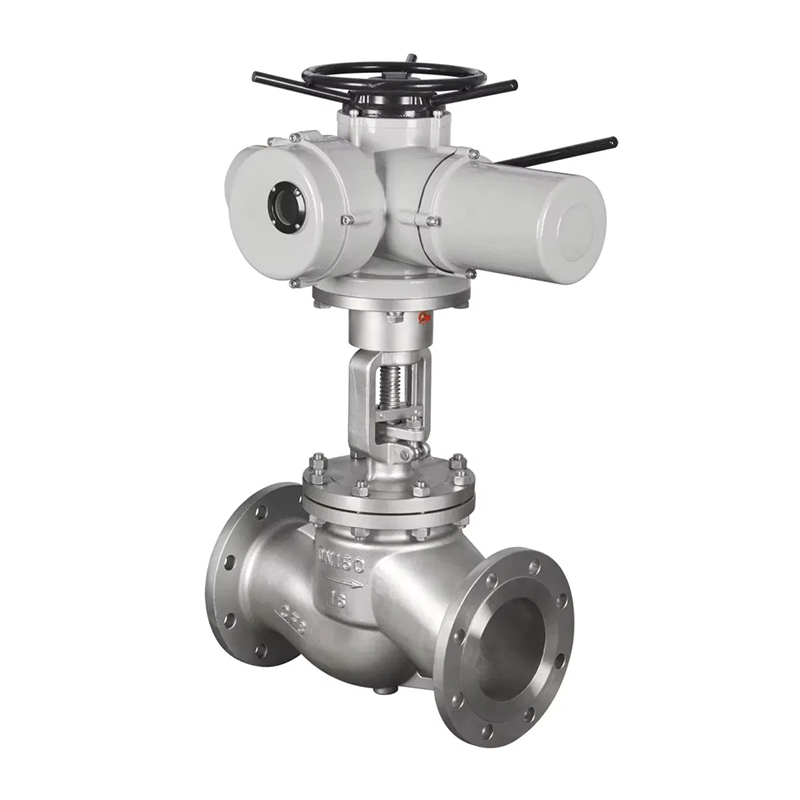

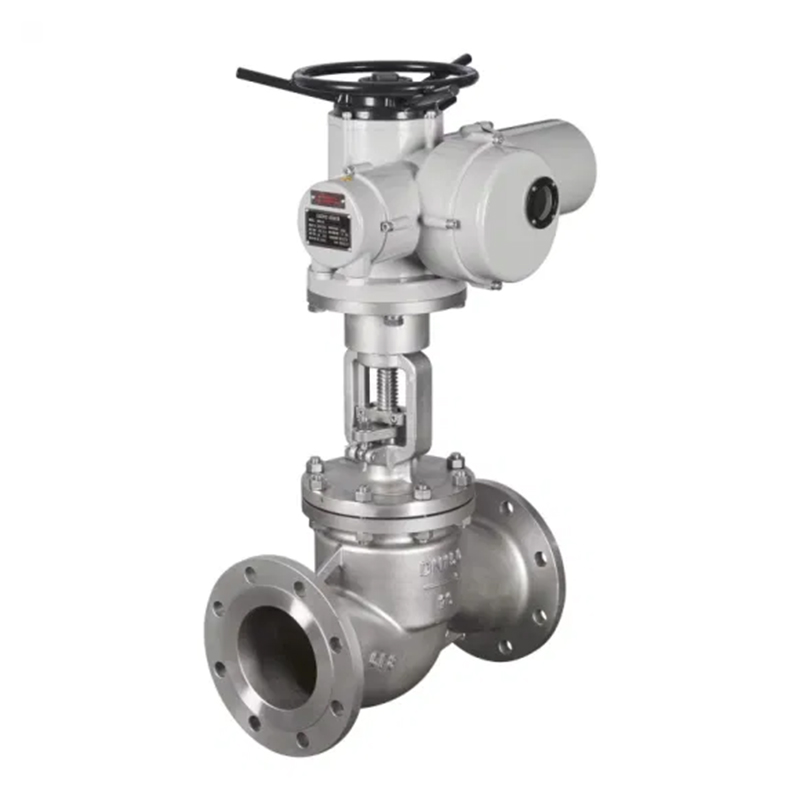

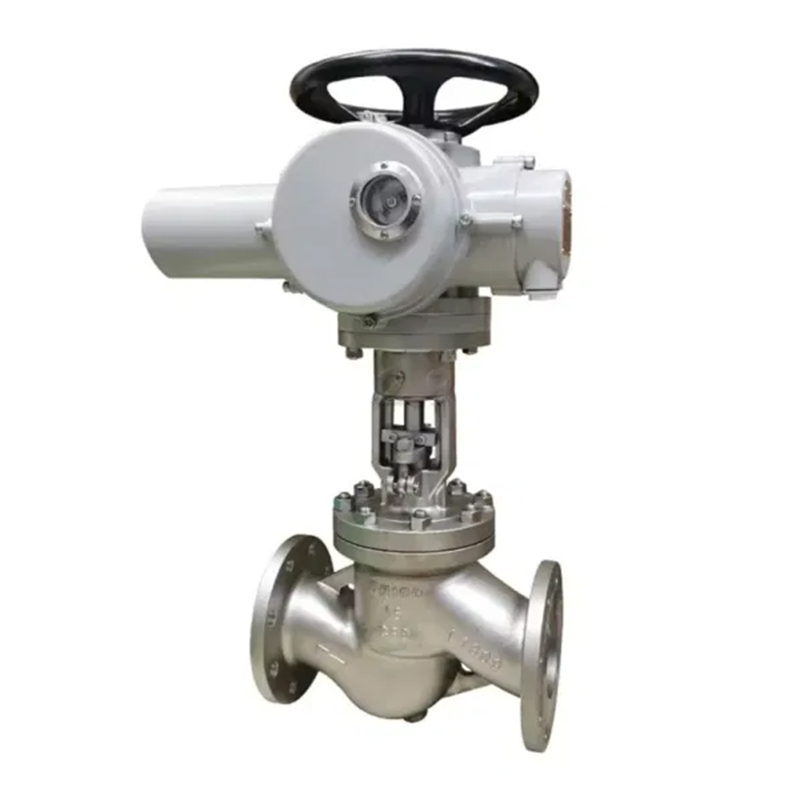

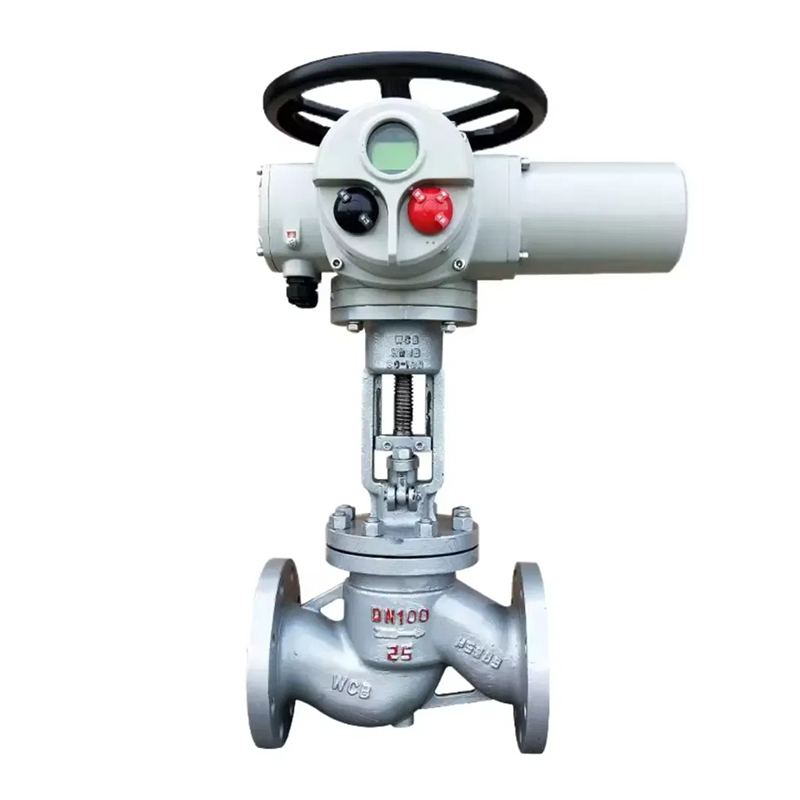

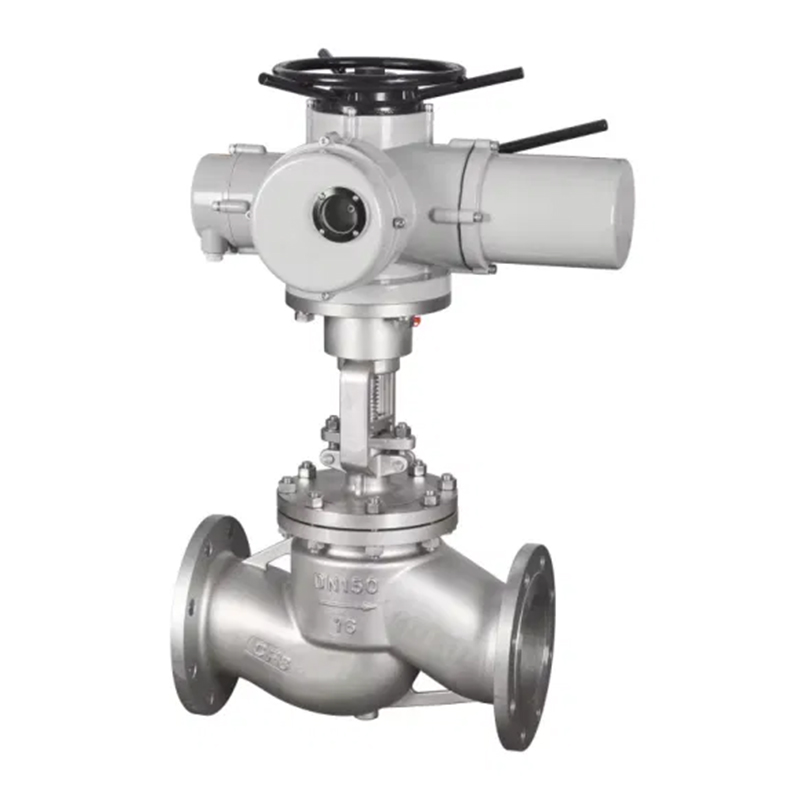

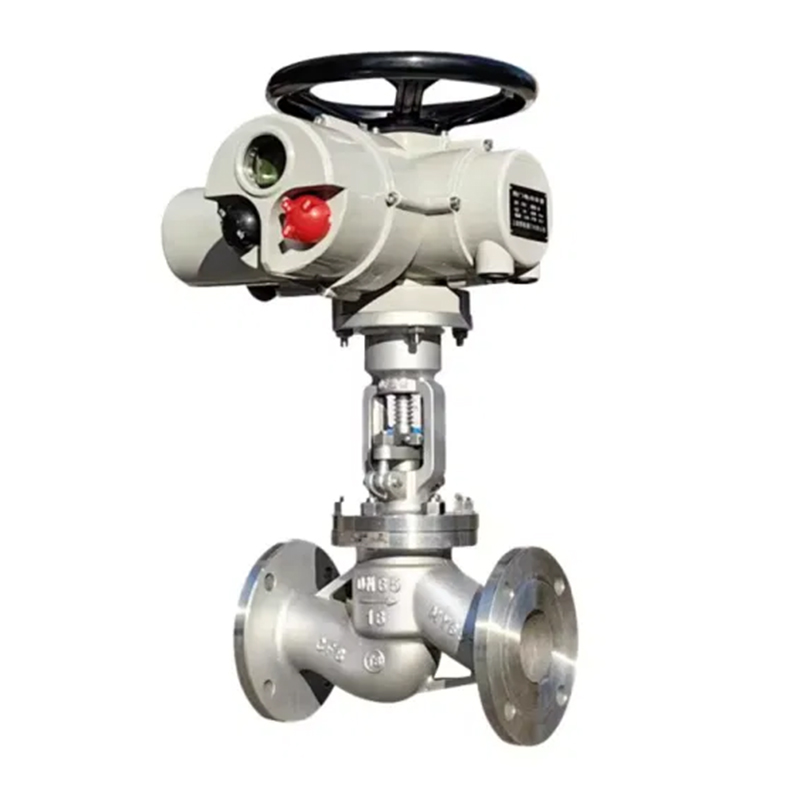

J941H Electric Globe CYMBALON

Adepto Quotes

J941H Electric Globe Valvulae Overview

J941H Electric subsisto CYMBALON de duabus partibus: electrica actuator et subsisto valvae. Civile corpus materia completum et filler et tota potest recte lego secundum ipsam operantes condiciones aut user elit. Potest applicari ad variis pressura, temperatus et medium conditionibus. In valvae est maxime ad interficiam off, distribute et mutare fluxus directionem in medium in Pipeline. Est plerumque non propter temperatio, quia inaequaliter vim est nimis magna durante temperatio, quae erit causa gravibus exesa ad valvae core. Convenitur aquae et INCILE petrochemical, Metallurgy et alibi cum princeps pressura.
Electric subsisto valvae est coactus signantes valvae, ita cum valvae clauditur, pressura debet applicari ad valvae pervideo ad opprimere signa superficies non ad Leak. Cum medium intrat valvae ab imo valvulae discus, resistentia, quod operating vi necessitates vincere est frictio inter valvae derivantur et filler et impulsus generatae per pressura est medium. Vim claudere valvae maior vi aperire valvae, ita diametri valvae derivantur sit magna aliter valvae caule flectere.

Technica modularis

Libitum Electric Actuator Features	Switch Type, integralis genus, regulating genus, intelligentes genus
Libitum Electric Actuator Models	Z Series, AK Series
Voltage	AC220V, AC380V
Nominis diameter	Dn10mm ~ dn300mm
Nominis pressura	Pn1.0MPA ~ PN6.4MPA
temperatura	-30 ~ 550ºC
Nexus	Flange
CYMBALON corpus Material	Steel, CCCIV, CCCXVI, 316L
Valvae laminam materiales	Steel, CCCIV, CCCXVI, 316L
Valvae sedes lining	Ptfe, ppl, metallum sigillum
Applicabiles	Aqua, PETROLEUM, Acidum, Viscosis liquor, Slurry Medium, etc.

J941H Electric Globe Valvulae Magnitudine et Models

PN (MPA)	DN (mm)	L	D	D1	D2	b	f	Z-φd
1.6	10	130	90	60	40	14	2	IV-φ14
	15	130	95	65	45	16	2	IV-φ14
	20	150	105	75	55	16	2	IV-φ14
	25	160	115	85	65	16	2	IV-φ14
	32	180	135	100	78	18	2	IV-φ18
	40	200	145	110	85	18	3	IV-φ18
	50	230	160	125	100	18	3	IV-φ18
	65	290	180	145	120	18	3	IV-φ18
	80	310	195	160	135	20	3	VIII-φ18
	100	350	215	180	155	22	3	VIII-φ18
	125	400	245	210	185	24	3	VIII-φ18
	150	480	280	240	210	24	3	VIII-φ23
	200	600	335	295	265	26	3	XII, φ23
	250	650	405	355	320	30	3	XII, φ23
	300	750	460	410	375	30	3	XII, φ23
2.5	10	130	90	60	40	16	2	IV-φ14
	15	130	95	65	45	16	2	IV-φ14
	20	150	105	75	55	16	2	IV-φ14
	25	160	115	85	65	16	2	IV-φ14
	32	180	135	100	78	18	2	IV-φ18
	40	200	145	110	85	18	3	IV-φ18
	50	230	160	125	100	20	3	IV-φ18
	65	290	180	145	120	22	3	IV-φ18
	80	310	195	160	135	22	3	VIII-φ18
	100	350	230	190	160	24	3	VIII-φ18
	125	400	270	220	188	28	3	VIII-φ18
	150	480	300	250	218	30	3	VIII-φ23
	200	600	360	310	278	34	3	XII, φ23
	250	650	425	370	332	36	3	XII, φ23
	300	750	485	430	390	40	4	XII, φ23

PN (MPA)	DN (mm)	L	D	D1	D2	D6	b	f	Z-φd
4.0	10	130	90	60	40	35	16	2	IV-φ14
	15	130	95	65	45	40	16	2	IV-φ14
	20	150	105	75	55	51	16	2	IV-φ14
	25	160	115	85	65	58	16	2	IV-φ14
	32	180	135	100	78	66	18	2	IV-φ18
	40	200	145	110	85	76	18	3	IV-φ18
	50	230	160	125	100	88	20	3	IV-φ18
	65	290	180	145	120	110	22	3	VIII-φ18
	80	310	195	160	135	121	22	3	VIII-φ18
	100	350	230	190	160	150	24	3	VIII-φ23
	125	400	270	220	188	176	28	3	VIII-φ25
	150	480	300	250	218	204	30	3	VIII-φ25
	200	600	375	320	282	260	38	3	XII, φ30
6.4	10	170	100	70	50	35	18	2	IV-φ14
	15	170	105	75	55	41	18	2	IV-φ14
	20	190	125	90	68	51	20	2	IV-φ18
	25	210	135	100	78	58	22	2	IV-φ18
	32	230	150	110	82	66	24	2	IV-φ23
	40	260	165	125	95	76	24	3	IV-φ23
	50	300	175	135	105	88	26	3	VIII-φ23
	65	340	200	160	130	110	28	3	VIII-φ23
	80	380	210	170	140	121	30	3	VIII-φ23
	100	430	250	200	168	150	32	3	VIII-φ25
	125	500	295	240	202	176	36	3	VIII, φ30
	150	550	340	20	240	204	38	3	VIII-φ34
	200	650	405	345	300	260	44	3	XII, φ34
