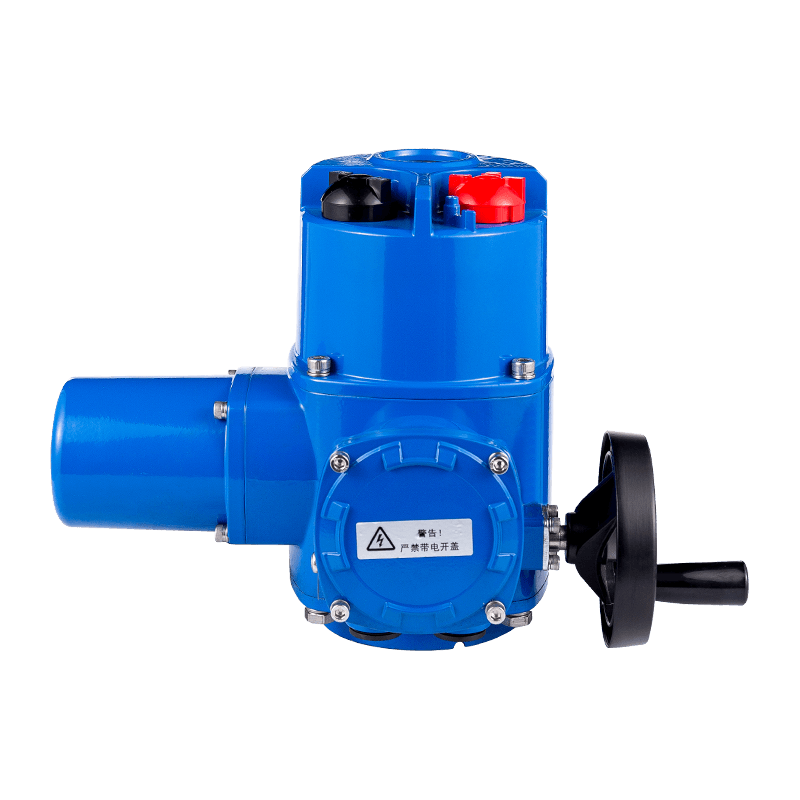

QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)
QL series partialis gyratorius electrica fabrica (captiosus version)

QL series partialis gyratorius electrica fabrica (captiosus version)

In QL series gyratorius valvae electrica cogitationes includit Ordinarius, integralis, regulantes, intelligentes, explosion-probationem et alia serie. Apta moderantum papilionem valvulae pila valvulae, plug valvulae, et alias valvulae qui gyrari XC gradus. Haec series products hereditat structural commoda Q series, cum parva magnitudine, lux pondus, princeps tutela gradu efficiens mechanica tradenda ratio, firmum perficientur, et pulcherrima species:

Adepto Quotes
PREV：QM series partialis gyratorius electrica fabricaDEINDE：Q-genus partialis gyratorius valvae electrica fabrica
  • Parameter
  • Contact Us

  • Exemplar specifications et principalis perficientur parametri

    Exemplar specifications Torque
    N.m     		Celeritate
    R / min     		Voltage
    380V     		Voltage
    220v     		Manual celeritate Ratio Maximum valvae derivantur Reference Weight (kg)
    Potentia
    W     		Electrica current
    A     		Potentia
    W     		Electrica current
    A
    Ql05 50 1 45 0.16 60 0.29 LX: I 19 8
    QL10 100 1 60 0.18 75 0.32 LX: I 19 8
    QL15 150 1 75 0.22 90 0.43 LX: I 19 8
    QL20 200 1 90 0.26 120 0.50 XC, I 28 13
    QL30 300 1 120 0.32 150 0.64 XC, I 28 13
    QL40 400 1 150 0.37 180 0.83 XC, I 28 13
    Ql60 600 1 180 0.72 250 1.40 LXXXVII: I 38 26
    Ql90 900 1 250 1.00 370 2.00 LXXXVII: I 38 26
    QL120 1200 1 250 1.00 370 2.00 LXXXVII: I 38 26
    Ql150 1500 1 370 1.65 550 3.15 LXXXVII: I 38 26
    Ql200 2000 0.5 370 1.65 550 3.15 CCCXLVIII: I 55 35
    Ql300 3000 0.5 370 1.65 550 3.15 CCCXLVIII: I 55 35
    Ql400 4000 0.5 550 2.7 CCCXLVIII: I 55 35
    Ql500 5000 0.5 550 2.7 CCCXLVIII: I 55 35


    QL species et nexum dimensiones

    Exemplar / Location B1 B2 H H1 H2 L L1 D
    Q05 / XV 68 114 156 270 73 250 157 140
    Q20 / XL 91 157 191 273 103 332 208 160
    Q60 / CL 143 203 227 309 126 424 232 250
    Q200 / D 143 203 291 373 190 424 232 250


    Model Libitum fly numero D1 D2 D3 n-D4 D7 (max) b H h H1
    Q5-15 F05 92 / 50 IV-M6 19 5 35 0 2
    F07 92 / 70 IV-M8 19 5 35 0 2
    Q20-40 F07 125 / 70 IV-M8 28 8 42 0 3
    F10 125 / 102 IV-M10 28 8 42 0 3
    Q60-120 F10 150 / 102 IV-M10 38 10 60 0 3
    F12 150 / 125 IV-M12 38 10 60 0 3
    F14 (customized) 197 / 140 IV-M16 38 10 60 0 3
    Q150 F14 197 / 140 IV-M16 38 10 60 0 3
    Q200-500 F14 215 / 140 IV-M16 55 16 80 0 5
    F16 215 / 165 IV-M203 55 16 80 0 5
