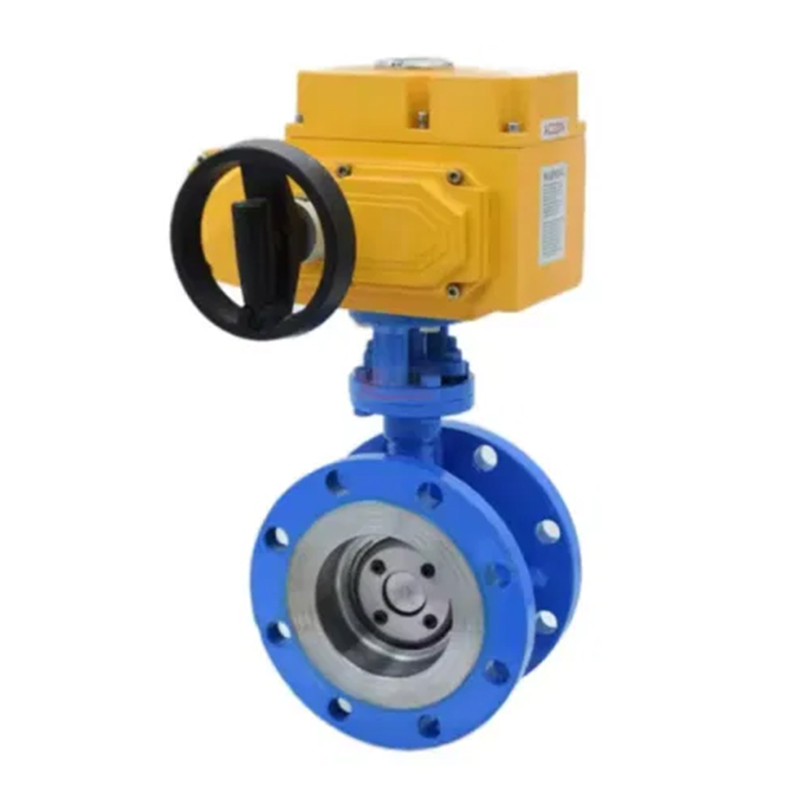

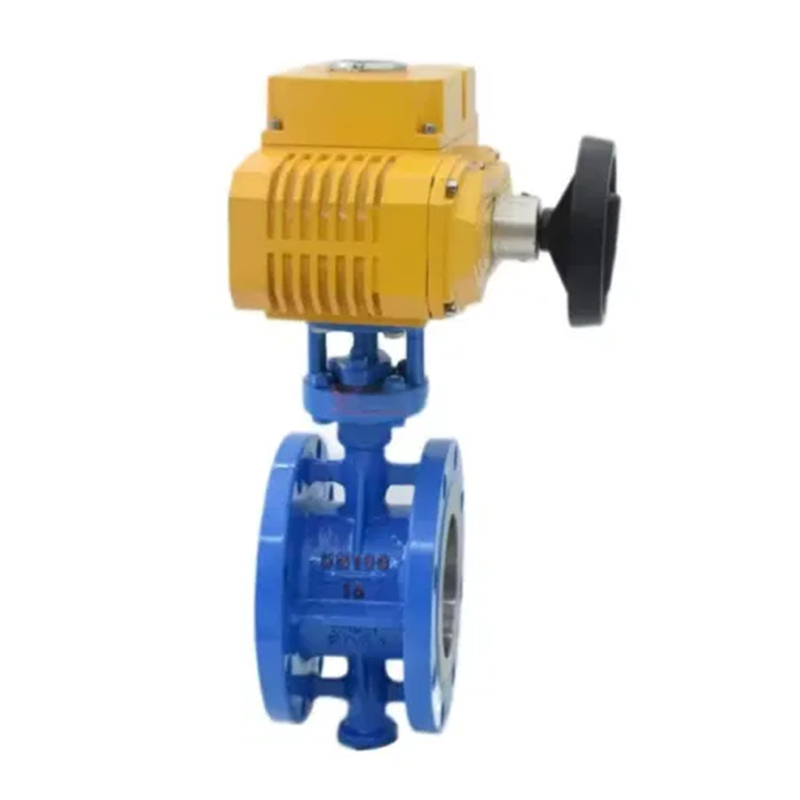

D941X Electric Flange Papfly CYMBALON

Adepto Quotes

Brevis

D941X electric flange soft seal butterfly valve has novel and reasonable design, simple structure, small size, light weight, 90-degree rotation, fast opening and closing, small operating torque, convenient operation, labor-saving and dexterous. Potest installed ullo loco facile ponere. Et sigilli potest reponi, ad signantes perficientur est reliable ad consequi duo-via signantes et nulla lacus, et signantes materia repugnant ad senescit et corrosio, et diu servitium vitae.
Cum flacceo papilio valvae in plene aperta situm, crassitudo papilio laminam est resistentia cum medium fluit per valvae corpore. Ideo ex pressura gutta generatae a valvae est valde parvum, ita habet bonum influere potestate characteres. Papilio valvulae non solum late in generali industries ut PETROLEUM, Gas, eget industria, et aqua curatio, sed etiam in refrigerationem aquae ratio of thermal potentia plantis.

Technica modularis

Libitum Electric Actuator Features	Switch Type, integralis genus, regulating genus, intelligentes genus
Libitum Electric Actuator Models	Q, DQ, QM, QC, AkqSeries, magna diametri libitum Z Series, Akseries
Voltage	AC220V, Ac110V, AC380, DC12V, DC24V, DC110V
Nominis diameter	Dn40mm ~ dn1400mm
Nominis pressura	Pn1.0mpa ~ pn1.6mpa
temperatura	EPDM: -30 ~ 100ºC Ptee: -30 ~ 120ºC
Nexus	Flange
CYMBALON corpus Material	Ferrum Ductile, Carbon Steel, immaculatam ferro
Valvae laminam materiales	Sphaeroides atramento, 304,316,316L, 2507,1.4529, aeris laminam, nylon, etc.
Valvae sedes lining	NBR, EPDM, PTFE
Applicabiles	Aquam, Gas, slurry, oleum, etc.

Principalis mensam dimensionem

DN (mm)	D		D1		L	D3	D4	H1	H2	Φ	b	N-φd
DN (mm)	1	1.6	1	1.6	L	D3	D4	H1	H2	Φ	b	1	1.6
50	165	165	125	125	108	70	50	83	130	12.7	18	IV-φ18	IV-φ18
65	185	185	145	145	112	70	50	93	140	12.7	18	IV-φ18	IV-φ18
80	200	200	160	160	114	70	50	100	150	12.7	20	VIII-φ18	VIII-φ18
100	220	220	180	180	127	90	70	110	165	15.8	20	VIII-φ18	VIII-φ18
125	250	250	210	210	140	90	70	123	180	19.05	22	VIII-φ18	VIII-φ18
150	285	285	240	240	140	90	70	143	200	19.05	22	VIII-φ22	VIII-φ22
200	340	340	295	295	152	125	102	171	230	22.2	24	VIII-φ22	XII, φ22
250	390	405	350	355	165	125	102	203	270	28.6	24	XII, φ22	XII, φ26
300	440	460	400	410	178	150	125	230	320	31.8	26	XII, φ22	XII, φ26
350	500	520	460	470	190	150	125	260	350	31.8	26	XVI, φ22	XVI, φ26
400	565	580	515	525	216	175	140	300	390	33.34	28	XVI, φ26	XVI, φ30
450	615	640	565	585	222	175	140	335	428	38	30	XX-φ26	XX, φ30
500	670	715	620	650	229	210	165	373	450	41.15	32	XX, φ26	XX-φ33
600	780	840	725	770	267	210	165	430	520	50.7	34	XX, φ30	XX, φ36
700	895	910	840	840	292	300	254	470	600	55	36	XXIV, φ30	XXIV, φ36
800	1015	1025	950	950	318	300	254	523	662	63.35	36	XXIV, φ30	XXIV, φ39
900	1115	1125	1050	1050	330	300	254	589	710	75	40	XXVI, φ33	XXVIII, φ39
1000	1230	1255	1160	1170	410	300	254	656	780	85	42	XXVI, φ36	XXVIII, φ42
1200	1405	1485	1340	1390	470	300	254	732	840	92	46	XXXII-φ37	XXXII-φ49
1400	1630	1685	1560	1590	530	300	254	840	905	130	50	XXXVI-φ37	XXXVI-φ493
