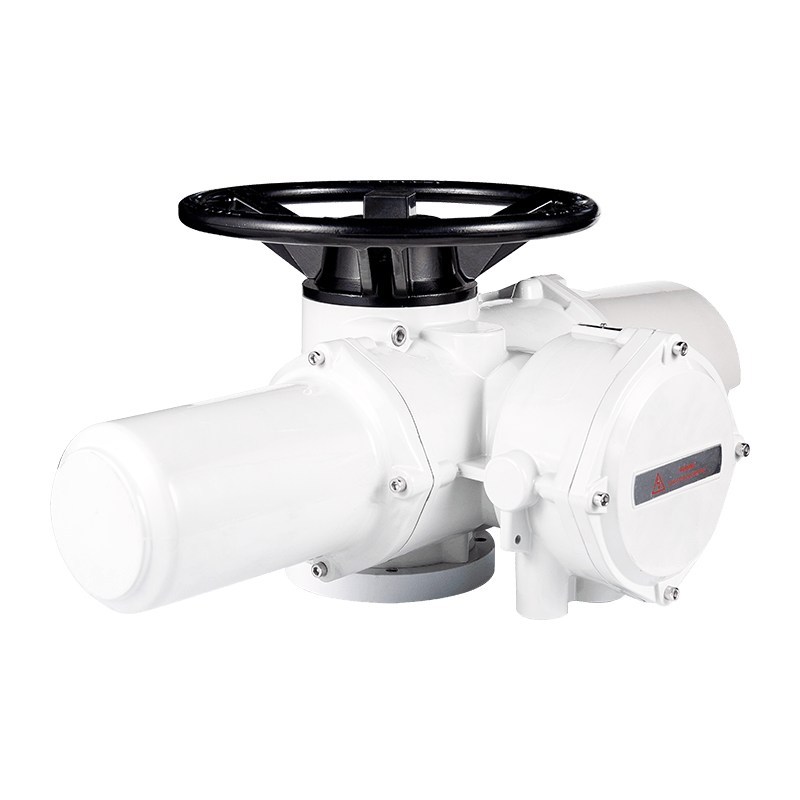

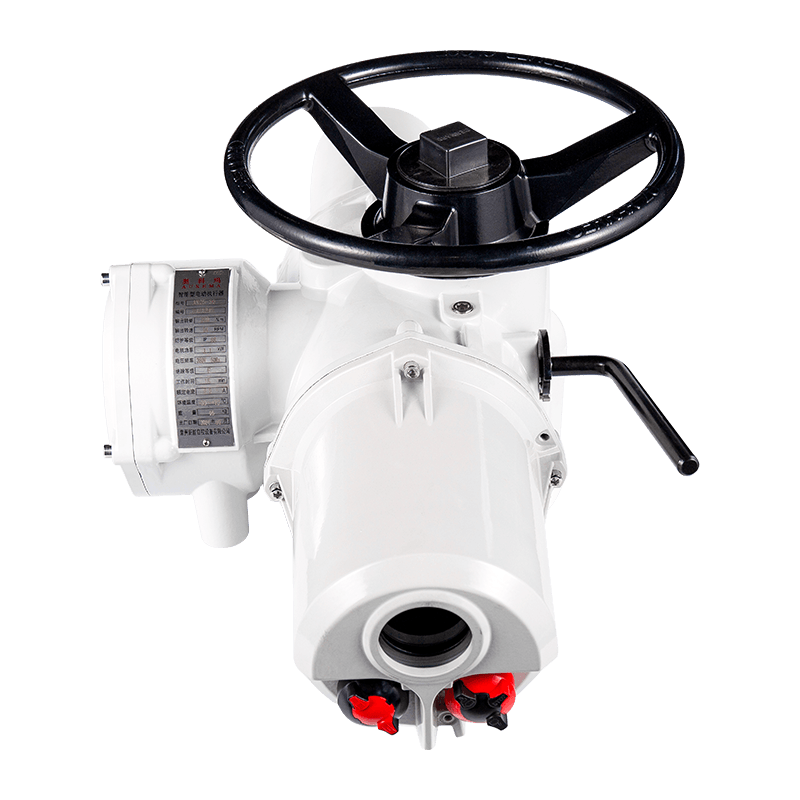

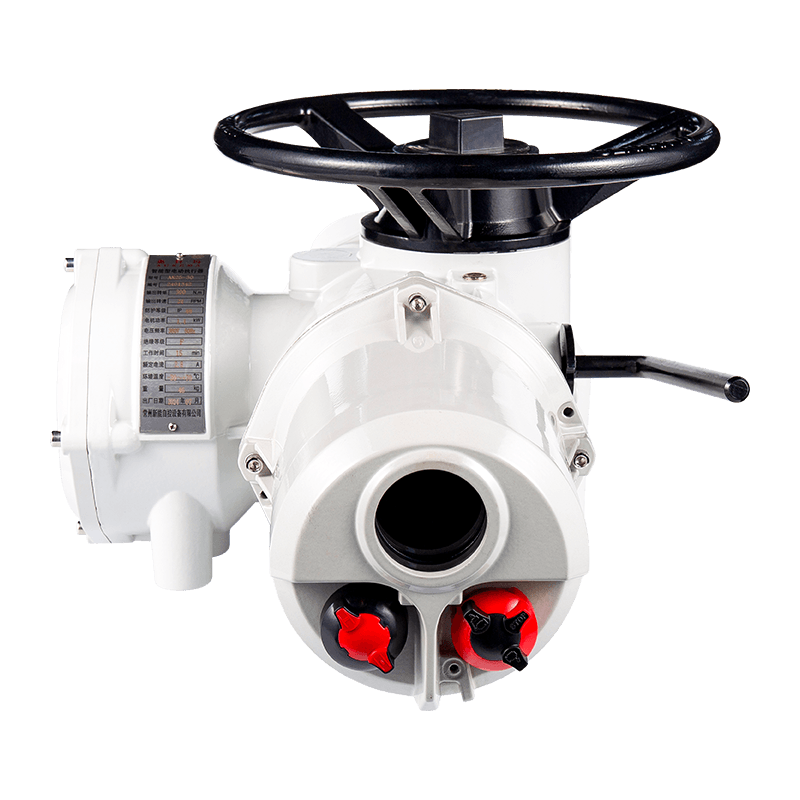

AK, AKZ multi rursus intelligentes electrica actuator

Et Aukema Gyratorius intelligentes Electric Actuator habet Duo Imperium Genera: AK intelligentes SWITCH Type et AKM intelligentes temperatio genus. Idoneam ad moderantum globe valvulae, porta Valvulae, IUGULUS valvulae, aquae porta valvulae et aliis valvulae, est novum generatio valvae imperium perits.

Adepto Quotes

AK, akz tres-tempus perficientur notitia

Exemplar	Output torque (m)	Output celeritate (RPM)	Supple voltage (V)	Power Phase Number (PH)	Frequency (HZ)	Nominis potentia (KW)	Rated current (a)	Reference Weight (kg)
Ak18	100	18	380	3	50	0.25	0.76	30
		24	380	3	50	0.25	0.76
		36	380	3	50	0.37	1.07
		48	380	3	50	0.37	1.07
	150	18	380	3	50	0.37	1.07
		24	380	3	50	0.37	1.07
		36	380	3	50	0.55	1.54
		48	380	3	50	0.55	1.54
AK25	200	18	380	3	50	0.55	1.54	46
		24	380	3	50	0.75	1.99
		36	380	3	50	1.1	2.8
		48	380	3	50	1.1	2.8
	300	18	380	3	50	0.75	1.99
		24	380	3	50	1.1	2.8
		36	380	3	50	1.5	3.65
		48	380	3	50	1.5	3.65
Ak35	500	18	380	3	50	1.5	3.65	69
		24	380	3	50	1.5	3.65
		36	380	3	50	2.2	5.05
		48	380	3	50	2.2	5.05
	600	18	380	3	50	1.5	3.65
		24	380	3	50	1.5	3.65
		36	380	3	50	2.2	5.05
		48	380	3	50	2.2	5.05
Ak40	900	18	380	3	50	2.2	5.05	190
		24	380	3	50	2.2	5.05
		36	380	3	50	3	6.64
	1200	18	380	3	50	2.2	5.05
		24	380	3	50	3	6.64
		36	380	3	50	4	8.62
Ak70	1800	18	380	3	50	4	8.62	200
		24	380	3	50	4	8.62
		36	380	3	50	5.5	11.5
Ak90	2500	18	380	3	50	4	8.62	203
		24	380	3	50	5.5	11.5
		36	380	3	50	7.5	15.3
Ak95	3000	18	380	3	50	5.5	11.5	205
		24	380	3	50	7.5	15.3
		36	380	3	50	10	19.5

AKKS Single-phase Actuator perficientur notitia

Exemplar	Output torque (m)	Output celeritate (RPM)	Supple voltage (V)	Power Phase Number (PH)	Frequency (HZ)	Nominis potentia (KW)	Rated current (a)	Reference Weight (kg)
Aks18	100	18	220	2	50	0.2	1.7	30
		24	220	2	50	0.2	1.7
		36	220	2	50	0.2	1.7
	150	18	220	2	50	0.2	1.7
		24	220	2	50	0.2	1.7
		36	220	2	50	0.2	1.7
AKS25	200	18	220	2	50	0.9	6.5	46
		24	220	2	50	0.9	6.5
		36	220	2	50	0.9	6.5
	300	18	220	2	50	1.1	7
		24	220	2	50	1.1	7.7
		36	220	2	50	1.1	7.7

AK, Akz Actuator externa dimensiones

Ak18-40 Type

Actuator parametri \ actuator cubits	A	B	C	D	E	F
Ak18	320	425	305	360	270	630
AK25	360	460	330	395	355	750
Ak35	420	515	365	400	360	760
Ak40	850	785	480	510	480	990

Ak70-95 Type

AK, AKZ Actuarius Flange Size

Torque Type Connection Size (JB2920)

Actuator parametri \ actuator cubits	D	D1	D2	di	D2	d	h	hi	f	b
Ak18	φ145	Φ120	φ90	φ30	φ45	IV-M10	11.5	2	5	23.5
AK25	φ185	Φ160	φ125	φ42	φ58	IV-M12	10.5	2	5	25
Ak35	Φ225	φ195	φ150	φ50	φ72	IV-M16	14	2	5	24
Ak40	Φ275	Φ235	Φ180	φ62	φ82	IV-φ22	14	2	5	21
Ak70-95	φ330	Φ285	φ220	φ72	φ98	IV-φ26	16	2	6	30

Dis Type Connection Size (GB12222)

Actuator parametri \ actuator cubits	Flange numerum	D	D1	D2 (F8)	f	D (max)	d	L	n	α
Ak18	F10	125	102	70	3	T28	M10	40	4	XLV °
AK25	F14	175	140	100	4	T36	M16	55
Ak35	F16	210	165	130	5	T44	M20	70
Ak40	F25	300	254	200		T60	M16	90	8	22.5 °
AK70-95	F30	350	298	230		T70	M20	110	8	22.5 °

Comparison AK et AKZ Wiring Terminals

Terminal obstructionum Vide numerum	Terminatio obstructionum Definitio	Terminal obstructionum Vide numerum	Nomine terminatio obstructionum	Terminal obstructionum Vide numerum	Nomine terminatio obstructionum
	Grounding character (Grounding)	16	S7 tenere Nullam I finem *	31
1	380vac1 **	17	S7 tenere Nullam II *	32
2	380vac2 **	18	S8 tenere Nullam I finem *	33	Longinquus shutdown
3	380VAC3 **	19	S8 tenere Nullam II Terminals *	34	Hold / subsisto
4	DC potentia copia 0 (24V DC potentia copia "-" output)	20	S9 tenere Nullam I finem *	35	APPAREO
4	DC potentia copia 0 (24V DC potentia copia "-" output)	21	S9 tenere Nullam II Terminals *	36
5	DC potentia copia 24v (24V DC potentia copia "" output)	22	4-20ma valvae situ feedback current output	37	Manual / Lorem altum voltage communis parte *
5	DC potentia copia 24v (24V DC potentia copia "" output)	23	4-20ma valvae situ feedback current output-	38	Remotis High voltage inauguralis
6	S1 Nullam finem I (Open in loco)	24		39	Manual / Lorem humilis voltage communis parte *
7	S1 Nullam II terminos (Open in loco)	25	Subitis Action (ESD)	40	S6 Nullam communi terminum (culpa metum)
8	S2 Nules I finem (off in loco)	26	4-20ma valvae loco potestate current input	41	S6 Nullam finem I (culpa metum)
9	S2 Nullam II terminos (off in loco)	27	4-20ma valvae loco imperium current input-	42	S6 II Relay Terminal (culpa metum)
10	S3 Nullam Terminal I (Open torque)	28	Manual / Automatic Signum Selector	43
11	S3 Nullam Terminal II (Open torque)	29	I S10 tenere Nullam I finem
12	S4 Nullam I finem (off torque)	30	S10 tenere Nullam II Terminals *
13	S4 Nullam II terminos (Torque off)	Moneo! Ante connectens ad potentia copia, placere referuntur ad rated voltage valorem in nameplate de electrica actuator. Cum potentia copia triplex 380V , Connect in No. 1.2.3 Terminal, et cum potentia copia est unum-phase 220v, coniungere No. 1.2 terminatio.
14	S5 Nullam I finem (Field / Longinquus Control)
15	S5 Nullam II terminos (agro / remote control)

AK Wiring funem Institutae mole cubits: Medio Intus est NTP1- dimidium, et duo in hinc portus utrimque sunt NPT1.
Quattuor tres-phase (380vac / 50Hz) Power terminales et tres uno-phase (220vac / 50Hz) potestatem terminals, cum specificationem M5. Sunt summa XLIII signum terminals, cum specificationem M4.
Type intelligentes switch: III-Core potestatem spinalis; Imperium filum III-core; XV Core signum funem.
Nota: Si vos postulo ut expand magis status indicator contactus aut bus control et peculiari requisita, placere contactus in elit vel nostrae Company.
