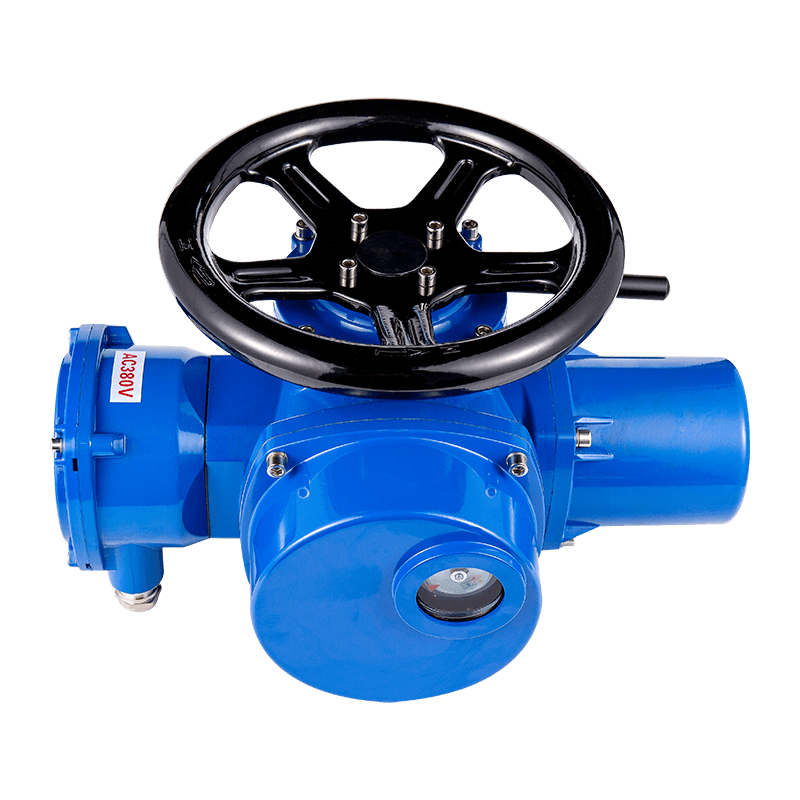

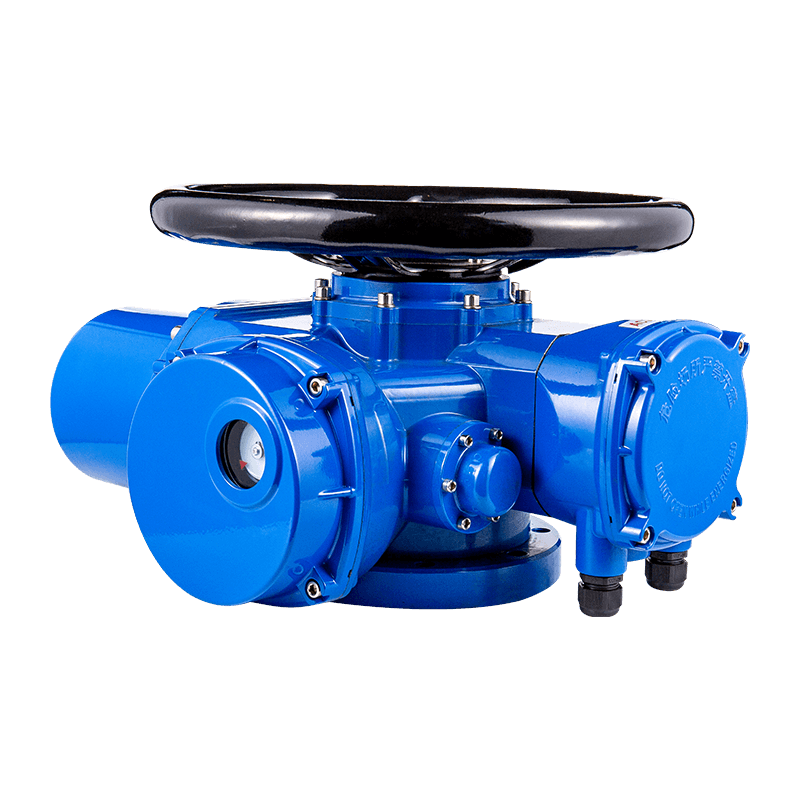

Overview

ZL Series Multi-Turn CYMBALON Electric Actuator est melius et perfecta structuram futatur in originali mature products, cum optimized tutela perficientur et clavis components. Hoc est a driving fabrica quod realizes intelligentes ostium, claudeto et regulanting imperium valvulae. Hoc series actuators habet de indole de plena functions, reliable perficientur, provectus imperium ratio, parva magnitudine, lightweight, securus usum et sustentationem, etc.
ZL Series actuators apta valvulae cum linearibus motum ostium et claudendo partes, ut porta valvulae, prohibere valvulae, diaphragma valvulae, plungor valvulae et celare valvulae, celare valvulae et abscondita valvulae . Cum matched cum Turbine boxes, possunt adhiberi ad pila valvulae, papilio valvulae et dampers, etc non potest praestare loci imperium, remote potestate et automatic imperium in valvulae, et late in industrias et in electrici Industria, pharmaceuticals, aquae servicia et agriculturae irrigationes.

Pario

Basic genus, intelligentes genus, CREPITUS-probationem basic type, CREPITUS-probationem intelligens genus.

Operantes environment et principalis technica condiciones

(I) Vox copia: tres-phase ac380v, 50Hz;
Libitum potentia copia: tres-phase ac400V, 415v, 660v (50Hz, 60Hz)
Single-phase AC220v, 110v (50Hz, 60Hz)
DC24V, 48v, 84v
(II) ambientium temperatus: -20 ℃ ~ LX ℃; Libitum Temperature: -40 ℃ ~ LXX ℃
(III) Relativum Umor: Non plus XCV% (ad XXV ° C)
(IV) Operantes environment: et Ordinarius genus adhibetur in locis sine flammabili, explosive et altus mordendo media; Et Flameproof Type (Exdiibt4) est in environments of iia,
Explosive Gas Mixtures ex genere Iib, Groups T1-T4
(V) Protection Level: IP65, IP67 (IP68 ad specialem ordinem)
(VI) Motricium est brevis-vicis officium type: rated operating tempus est X minuta (15-30 minuta pro speciali ordines), et classis f tactus.
(VII) anti-corrosio coating: High-temperatus electrostatic spray anti-corrosio epoxy plastic pulveris
(VIII) Main munus features intelligentes electrica actuators
Mechatronic consilio, parva magnitudine et leve
Hoc adoptat digital integrated chip, cum potens munera et alta praecisione.
Cum non-MOLESTUS consilium parametri occasum et debugging fieri per KNOBS aut ultrarubrum remotis imperium sine aperire arca operimentum. Quod operatio est simplex et ieiunium et signatio est altior.
In ictu obslacsio adoptat absolutum encoder, valvae situ non amisit, anti-intercessiones facultatem est fortis, accurate est altior et servitio vita longa.
Et LCD Subtitles sunt available in Seres vel Latina.
Hoc habet munera ut peregrinatione terminum praesidium, torque praesidio, armenti terrorem, overheat praesidio, signum defectum tutela, virtutis phase damnum praesidium, et automatic tempus seriem idem et disciplinam.
Intellentes genera includit intelligentes SWITCH Type, intelligentes Type et provectæ intelligentes genus.
(IX) Intelligentes SWITCH Type input Signum: 24VDC Arteriam vel gradu signum.
Output signum: Nullam output, contactus rated capacity: 5a, 250VAC, 5a, 30vdc.
Output Situs Analog Signum: 4-20MA
Intelligentes PRAETERIENTIA Analog Signum: 4-20MA
Analog output signum: 4-20ma
Switch initus Signum: 24VDC Arteriam vel gradu signum.
Switching output signum: Nullam output, contactus rated capacitatem: 5a, 250VAC, 5a, 30vdc.
Basic Error: ≤1
Et provectus intelligentes genus can suscipio ESD subitis override praesidio, bus communicationis, Bluetooth, Wireless imperium et alia munera.

Exemplar specifications et perficientur parametri

Exemplar	Nominal Torque NM	Output celeritate r / min	Output hastile occasum numerum revolutionum (vices)	Motricium Power (KW)	Manual celeritate Ratio	Maximum caule diameter (mm)	Reference Weight (kg)
Zl5	50	18	180	0.12	I: I	30	20
ZL10	100	18	180	0.18	I: I	30	20
		Viginti quattuor	180	0.25	I: I	30	20
		36	180	0.37	I: I	30	20
		48	180	0.55	I: I	30	20
ZL15	150	18	180	0.25	I: I	30	20
		Viginti quattuor	180	0.37	I: I	30	20
		36	180	0.55	I: I	30	20
		48	180	0.75	I: I	30	20
ZL20	200	18	180	0.37	I: I	40	29
		Viginti quattuor	180	0.55	I: I	40	30
		36	180	0.75	I: I	40	34
		48	180	1.1	I: I	40	35
ZL30	300	18	180	0.55	I: I	40	30
		Viginti quattuor	180	0.75	I: I	40	34
		36	180	1.1	I: I	40	35
		48	180	1.5	I: I	40	35
ZL45	450	18	1300	0.75	I: I	50	45
		Viginti quattuor	1300	1.1	I: I	50	45
		36	1300	1.5	I: I	50	45
		48	1300	2.2	I: I	50	45
ZL60	600	18	1300	1.1	I: I	50	45
		Viginti quattuor	1300	1.5	I: I	50	45
		36	1300	2.2	I: I	50	45
		48	1300	3	I: I	50	45
ZL90	900	18	5500	1.5	I, IV	60	62
		Viginti quattuor	5500	2.2	I, IV	60	62
		36	5500	3	I, IV	60	62
		48	5500	4	I, IV	60	62
ZL120	1200	18	5500	2.2	I, IV	60	63
		Viginti quattuor	5500	3	I, IV	60	63
		36	5500	4	I, IV	60	63
		48	5500	5	I, IV	60	63

Nota super parametri normalis copia. Si speciali requisitis, placere indicant eos cum ordine.

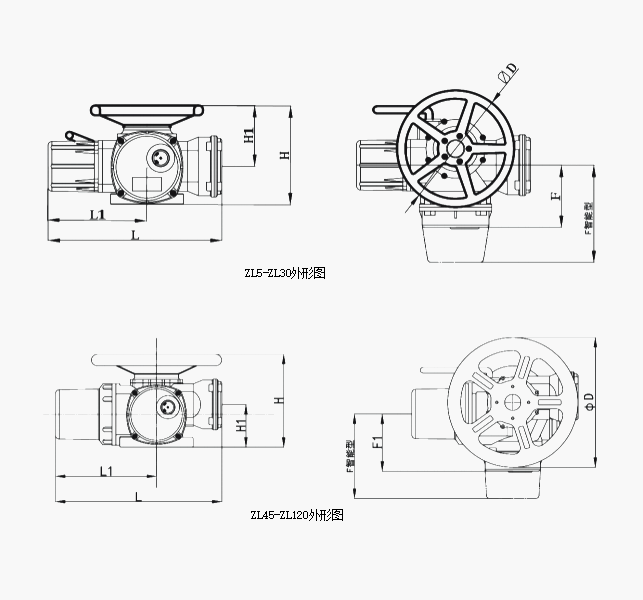

ZL Electric Actuator Dimensions

Exemplar	L	L1	H	H1	F	INTERMITTO	D
ZL 05-15	430	252	230	97	159	227	298
ZL 20-30	443	252	250	97	159	227	298
ZL 45-60	520	330	300	150	250	318	395
ZL 90-120	670	460	430	270	450	518	550

Flange structuram et nexum dimensiones

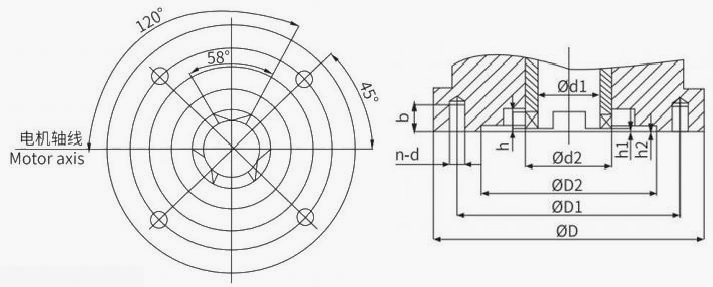

ZL actuator interface dimensiones (Torque Type)

Exemplum actuator	Flange Model	Actuator output interface Location Details (Torque Type JB CCXCII 0)
Exemplum actuator	Flange Model	D	D1	D2	D1	D2	nd	b	Screw foramen partem	h	H1	h2
Z l V Z X X Z L XV	II ⅰ	115	95	75	26	39	IV-M8	20	XLV °	6	2	5
Z l V Z X X Z L XV	2	145	120	90	30	45	IV-M10	20	XLV °	8	2	5
ZL20 ZL30	III ⅰ	145	120	90	30	45	IV-M10	20	XLV °	8	2	5
ZL20 ZL30	3	185	160	125	42	58	IV-M12	20	XLV °	10	2	5
Z LV XLV Z LX LX	4	225	195	150	52	68	IV-M16	27	XLV °	12	2	5
Z l XC Z L CXX	V ⅰ	225	195	150	52	68	IV-M16	27	XLV °	12	2	5
Z l XC Z L CXX	5	275	235	180	62	80	IV-M20	40	XLV °	14	2	5

ZL actuator interface dimensiones (falcem genus)

Exemplum actuator	Flange Model	Actuator output interface magnitudinem Details (Forit Type GB12222)
Exemplum actuator	Flange Model	D	D1	D2	D1 Trapezoidal Thread (Max)	nd	b	Screw foramen partem	h	L
ZL05 / ZL10 / Z15 ZL10 Z L XV	F10	125	102	70	Tr28	IV-M10	16	XLV °	3	40
ZL20 / ZL30	F14	175	140	100	Tr36	IV-M16	25	XLV °	4	55
ZL45 / ZL60	F16	210	165	130	Tr44	IV-M20	35	XLV °	5	70
ZL90 / ZL120	F25	300	254	200	TR60	VIII-M16	30	22.5 °	4	90
