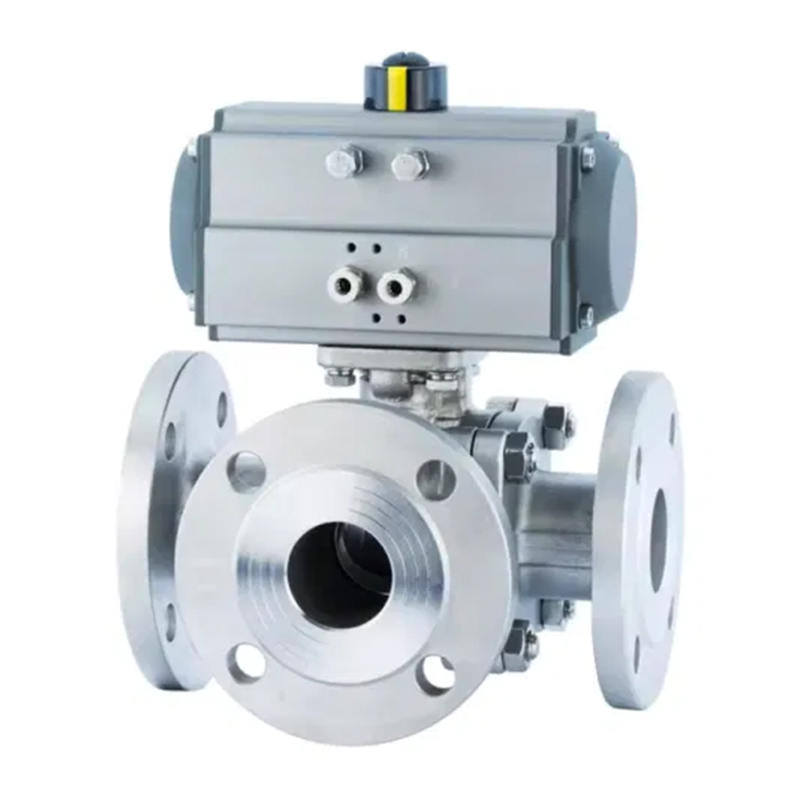

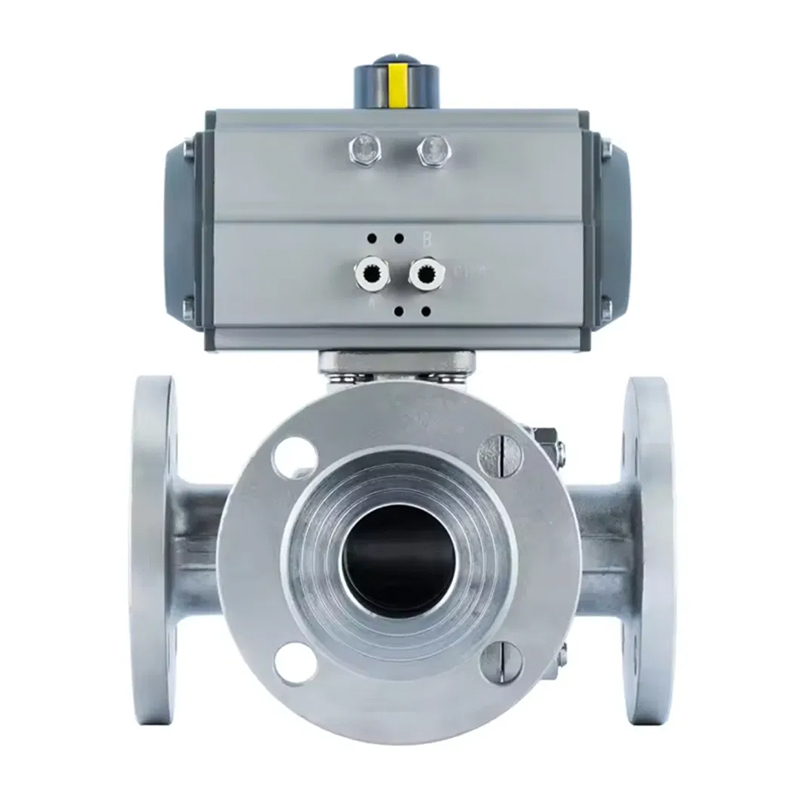

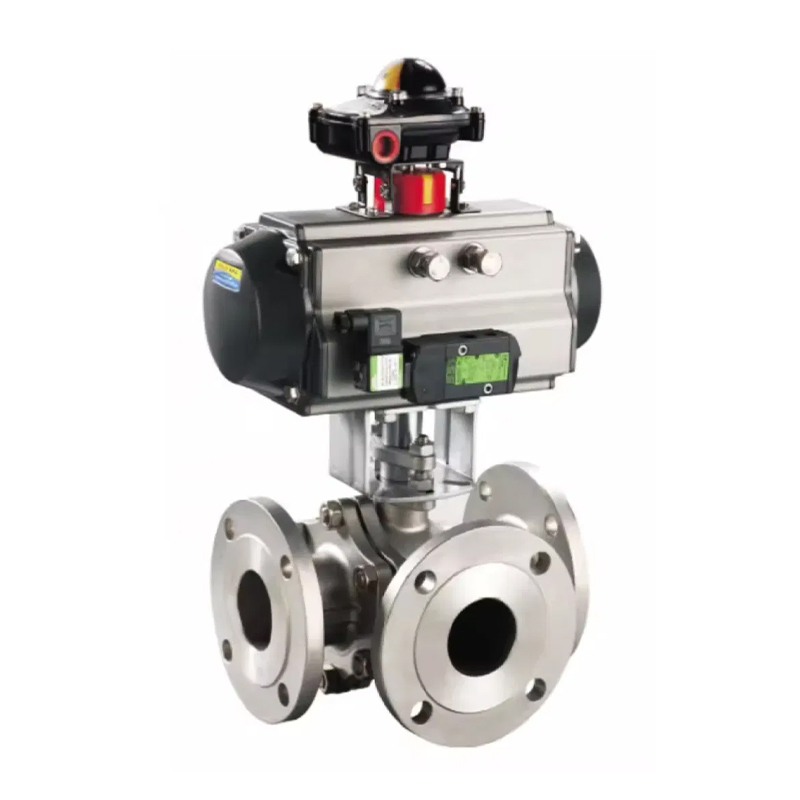

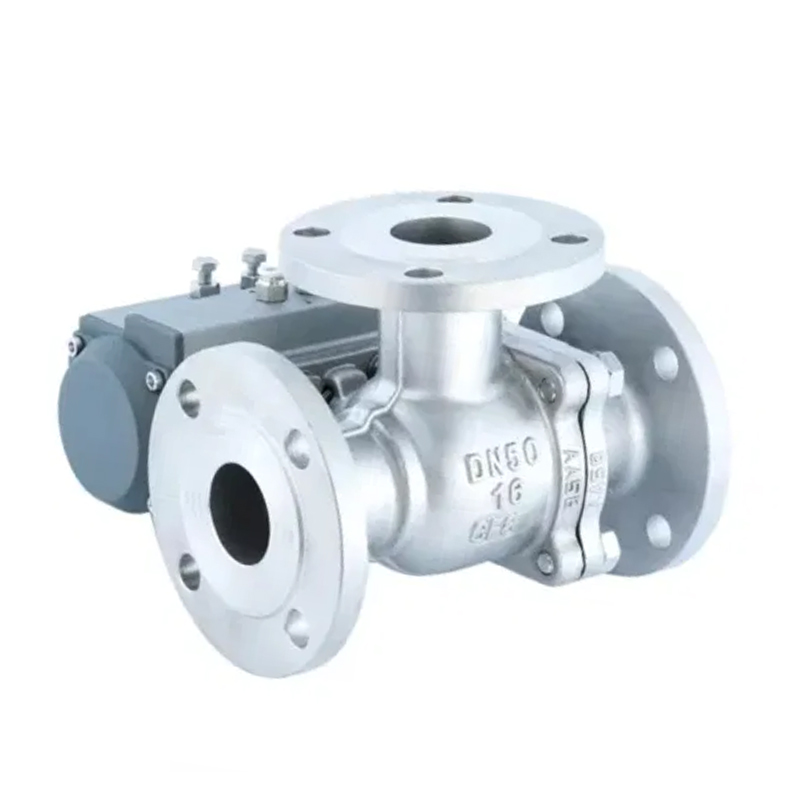

Q644 / 45f Pneumatic tria, via LABIUM Pila valvae
Q644 / 45f Pneumatic tria, via LABIUM Pila valvae
Q644 / 45f Pneumatic tria, via LABIUM Pila valvae
Q644 / 45f Pneumatic tria, via LABIUM Pila valvae
Q644 / 45f Pneumatic tria, via LABIUM Pila valvae
Q644 / 45f Pneumatic tria, via LABIUM Pila valvae
Q644 / 45f Pneumatic tria, via LABIUM Pila valvae
Q644 / 45f Pneumatic tria, via LABIUM Pila valvae

Q644 / 45f Pneumatic tria, via LABIUM Pila valvae

Adepto Quotes
PREV：Nullus prior articulumDEINDE：Q641F Pneumatic Pila Pila valvae
  • Parameter
  • Contact Us

  • Brevis

    Q644 / 45f Pneumatic tria-via LAGE Pila valvae potest esse l-genus vel T-genus. L-Type (BQ644F) Tres-modo pila valvae adhiBetur ad switching fluxus directionem in medium et potest coniungere duo perpendicularis channels; T-Type (BQ645F) Tres-modo pila valvae adhibetur ad medium diversionem, confluentes et fluunt directionem commutatione. T-Type tres-modo potest facere tres canales internonected vel coniungere duo ex illis. Pneumatic tria via pila valvae plerumque adoptat duos cathedra structuram et potest capere quatuor sedes structuram secundum user elit. Hoc est late in aqua copia, Petrochemical, metallurgy, metalla, textile, industria, papermaking, cibum, ferro et alia Pipeline systems ut switch fluxus directionem et intervallum et divertit et miscere in medium et intervallum et intervallo et mixturi et medium et divertit et intervallo et medium et divertit et intervallo.


    Technica modularis

    Pneumatica Actuator libitum Features Duplex agens, una agens
    Pneumatic Actuator libitum exempla In series, AW Series
    Solenoidal Voltage Ac110V, AC220V, AC24V, DC24V
    Air pressura 2BAR-8Bar
    Nominis diameter Dn15mm, dn200mm
    Nominis pressura Pn1.0mpa ~ pn1.6mpa
    Applicabiles temperatus PTFFE: -30- 120ºC Ppl: ≤350ºC Metal Sigillum: ≤450ºC
    Nexus Flange
    CYMBALON corpus Material Steel, CCCIV, CCCXVI, 316L
    Valvae laminam materiales CCCIV, CCCXVI, 316L
    Valvae sedes lining Ptfe, ppl, metallum sigillum
    Applicabiles Aqua, PETROLEUM, Acidum, Viscosis liquor, Slurry Medium, etc.

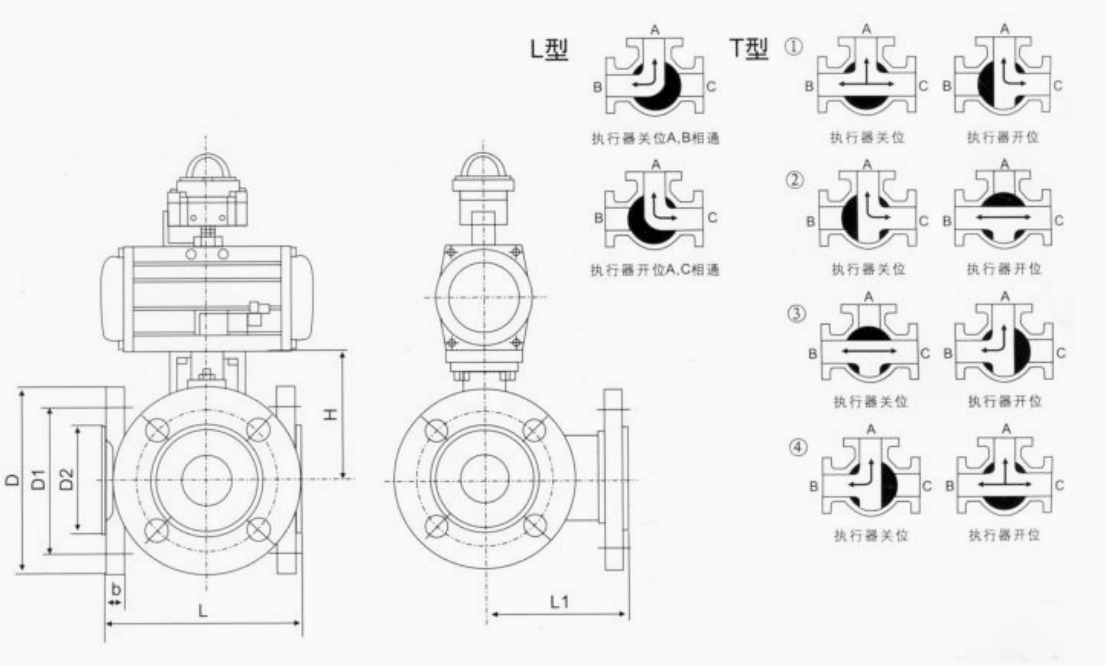

    Principalis mensam dimensionem

    DN (mm) H L L1 D D1 D2 b
    15 53 150 75 95 65 46 14
    20 58.5 160 75 105 75 56 16
    25 70 180 90 115 85 65 16
    32 77.5 200 100 140 100 76 18
    40 86.5 220 110 150 110 84 18
    50 92 240 120 165 125 99 20
    65 107 260 130 185 145 118 20
    80 119 280 140 200 160 132 20
    100 150 320 160 220 180 156 22
    125 200 380 190 250 210 184 22
    150 240 440 220 285 240 211 24
    200 300 550 275 340 295 266 24
