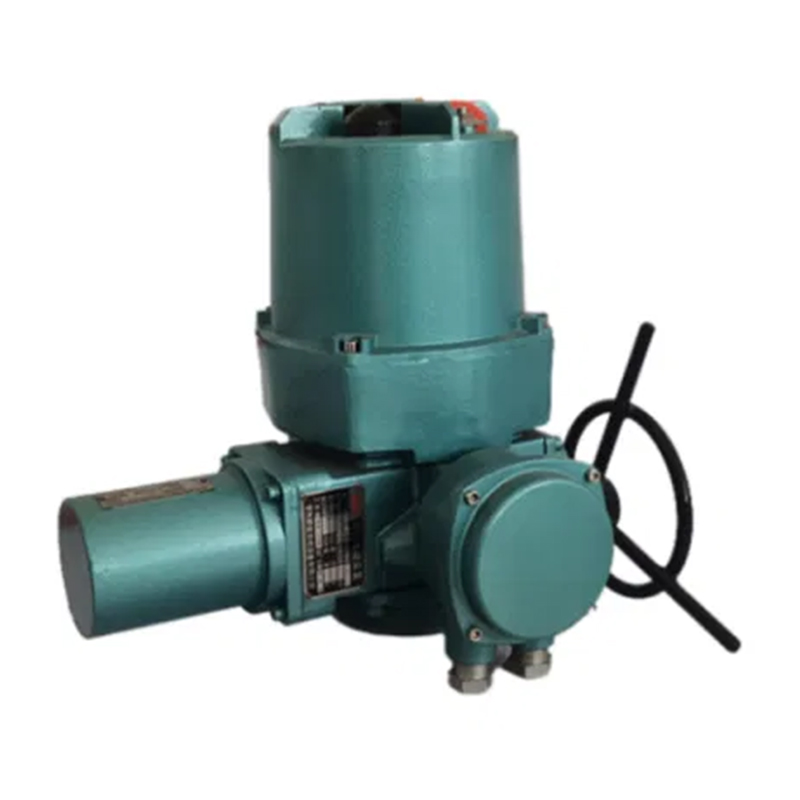

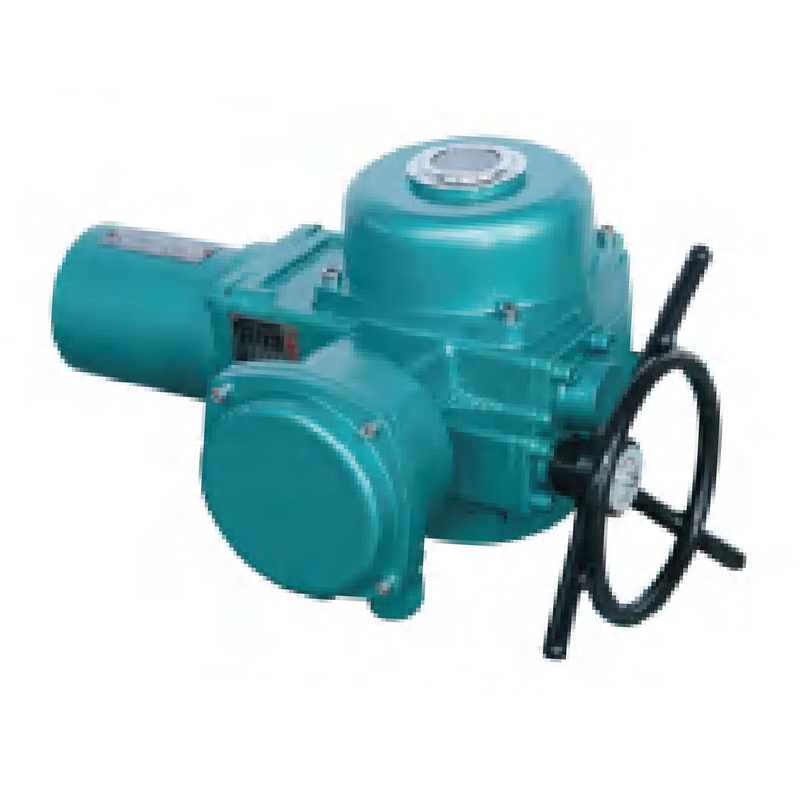

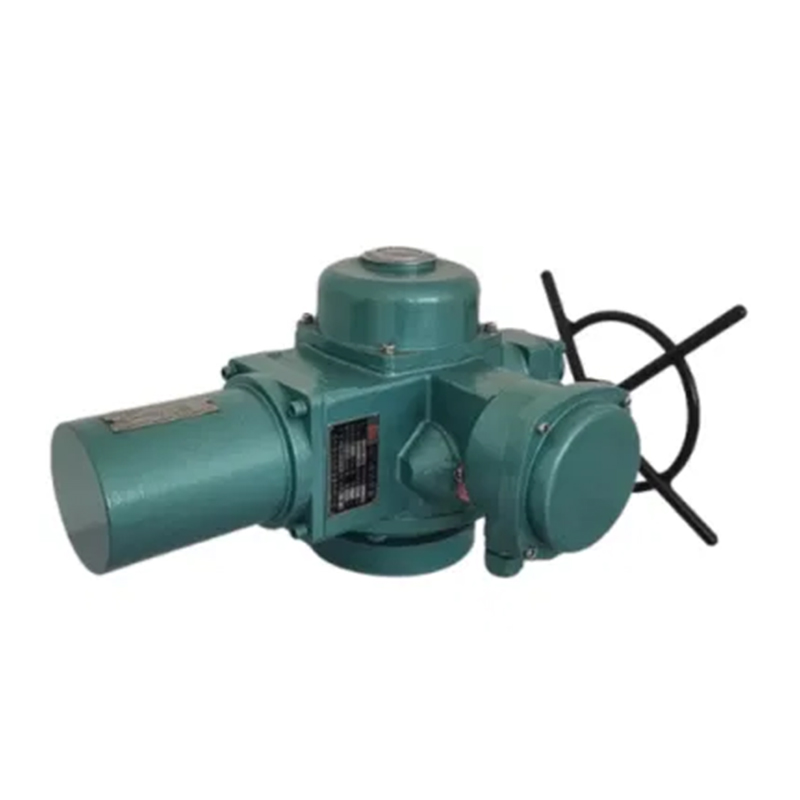

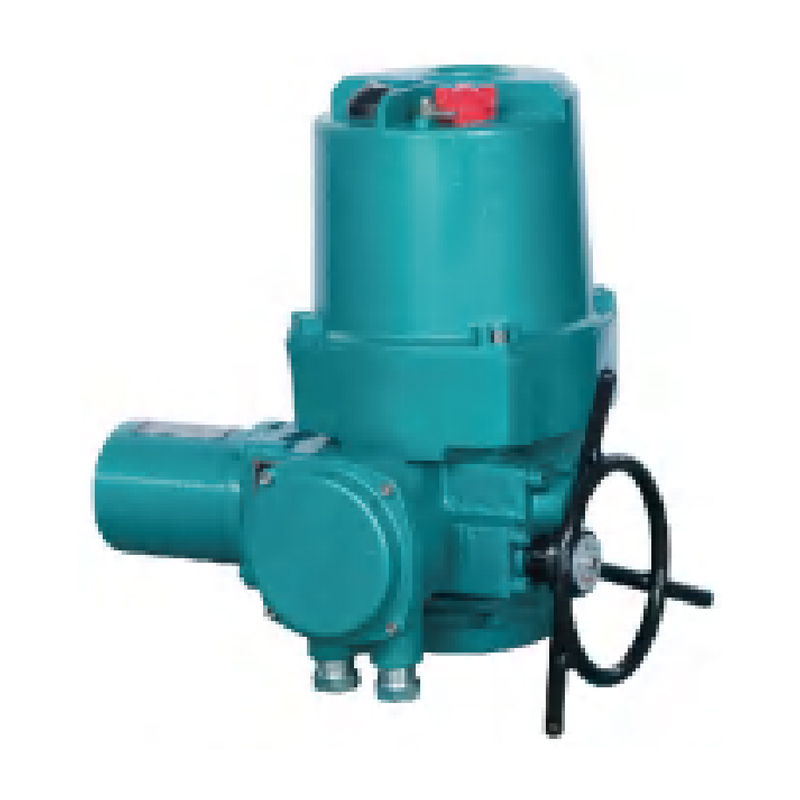

Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica
Q-genus partialis gyratorius valvae electrica fabrica

Q-genus partialis gyratorius valvae electrica fabrica

Adepto Quotes
PREV：QL series partialis gyratorius electrica fabrica (captiosus version)DEINDE：Akq, AKQM partialis Gyratorius intelligentes Electric Actuator
  • Parameter
  • Contact Us

  • Exemplar specifications et principalis perficientur parametri

    Exemplar Output torque (n.m) Maximus caule diameter (mm) Manual celeritate Ratio Output celeritate (R / min) Reference Weight (kg)
    0.5 1 1.5 2 3 4
    Motricium Power (K ​​W)
    Q10 100 28 88 0.03 0.06 0.09 0.09 0.18 0.18 30
    Q20 200 28 88 0.06 0.09 0.12 0.12 0.25 0.25 30
    Q30 300 28 88 0.06 0.12 0.18 0.18 0.37 0.37 35
    Q40 400 28 88 0.09 0.18 0.25 0.25 - - 38
    Q60 600 42 74 0.18 0.18 0.25 0.25 0.55 0.55 65
    Q90 900 42 74 0.18 0.25 0.37 0.37 0.75 0.75 70
    Q120 1200 42 74 0.18 0.37 0.55 0.55 1.1 1.1 75
    Q200 2000 60 67 0.37 0.55 0.75 1.1 - - 100
    Q250 2500 60 67 0.55 0.55 0.75 1.1 - - 100
    Q300 3000 60 67 0.55 0.75 1.1 - - - 100
    Q400 4000 60 67 0.55 0.75 - - - - 100
    Q500 5000 60 67 0.75 1.1 - - - - 105

    Nota, cum _ est iusto copia

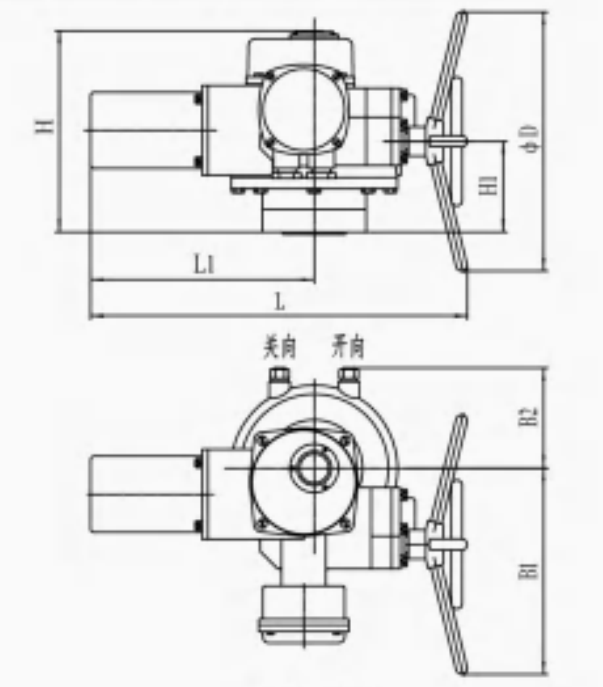

    Specie et dimensiones

    Exemplar B1 B2 H1 H2 L L1 φd
    Q10-40 210 100 230 390 480 260 200
    Q10 ~ 40B 315 100 265 445 530 310 200
    Q60 ~ CXX 255 145 295 455 550 325 75
    Q60 ~ 120B 360 145 340 510 585 365 375
    Q200 ~ D 285 180 315 460 665 390 510
    Q200 ~ 500B 390 180 350 495 665 390 510

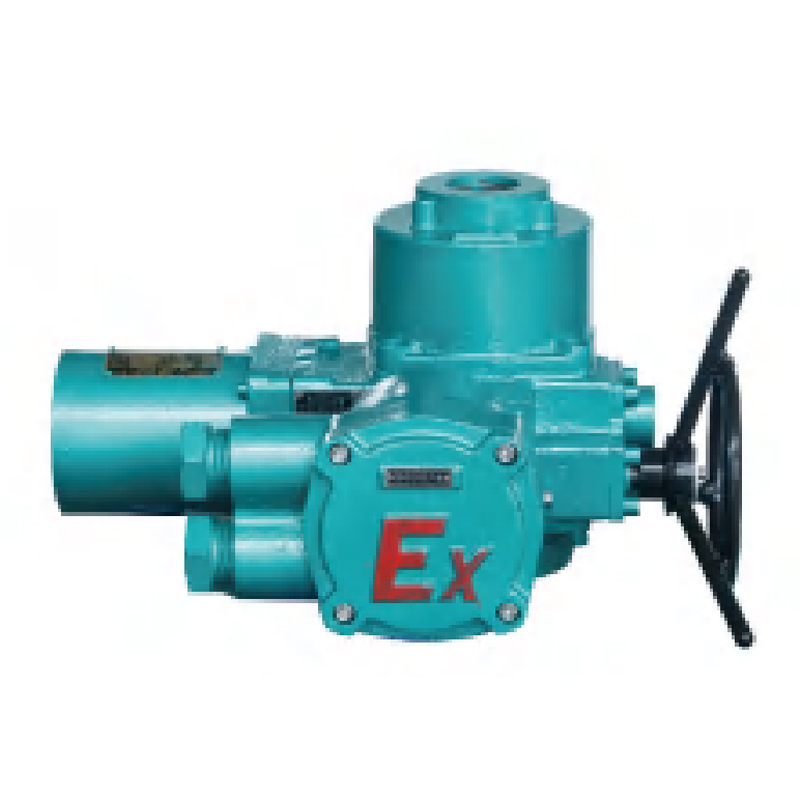

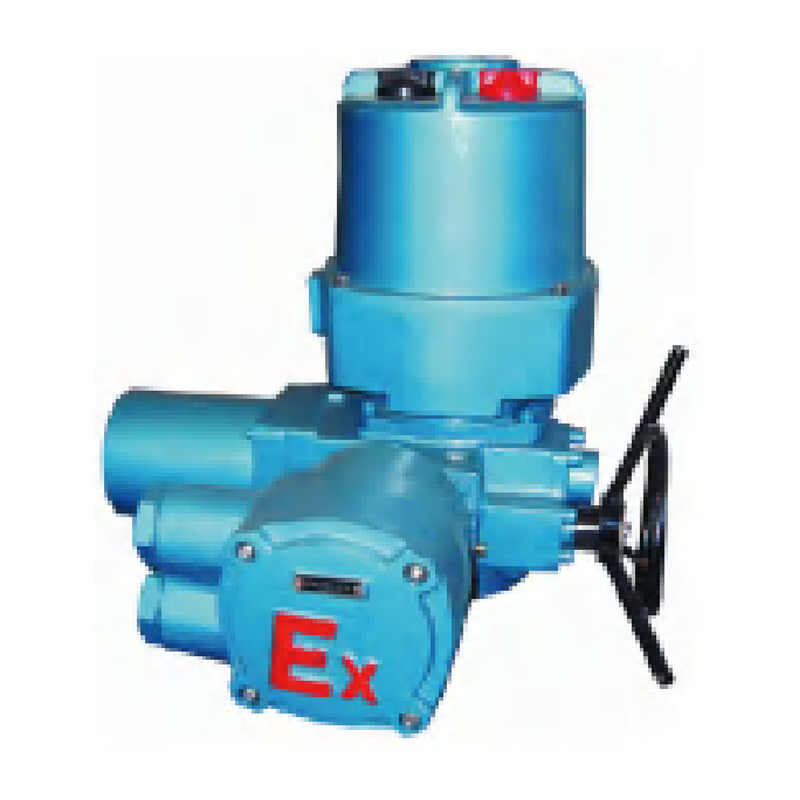

    Note: QB est Flameproof Type (Ordinarius Flameproof Type, integralis Flameproof Type)
    H1 est iusto type (iusto velit genus, iusto CREPITUS-probationem type)
    H2 totum corpus type (toto velit genus, totum explosion-probationem type)

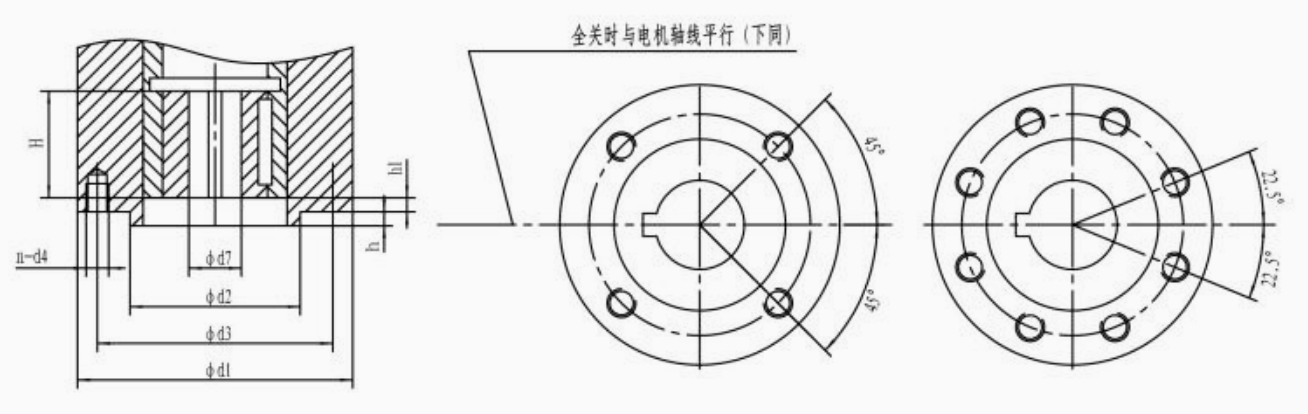

    Schematic diagram of Q-genus rotating Flange structuram

    Connexionem magnitudine

    Flange numerum Electric installation Model D1 D2 (F8) D3 n-D4 D7 H h H1
    Factory productio Maximum
    F05 Q10 65 35 50 IV-M6 / 22 40 3 3
    F07 Q20 90 55 70 IV-M8 / 28 45 3 3
    F10 Q30 125 70 102 IV-M10 / 28 45 3 3
    Q40
    Q60 / 42 65
    F12 Q90 150 85 125 IV-M12 / 42 65 3 3
    F14 Q120 175 100 40 IV-M16 / 42 65 3 3
    Q200 60
    Key XVIII     		60 80 2
    Q250
    F16 Q300 210 130 165 IV-M20 60
    Key XVIII     		60 80 3 2
    Q400
    Q500
    F25 Q500 300 200 254 VIII-M16 60
    Key XVIII     		60 100 3 2

    Nota: De Connection Size potest esse customized secundum User Requirements.
