Brevis

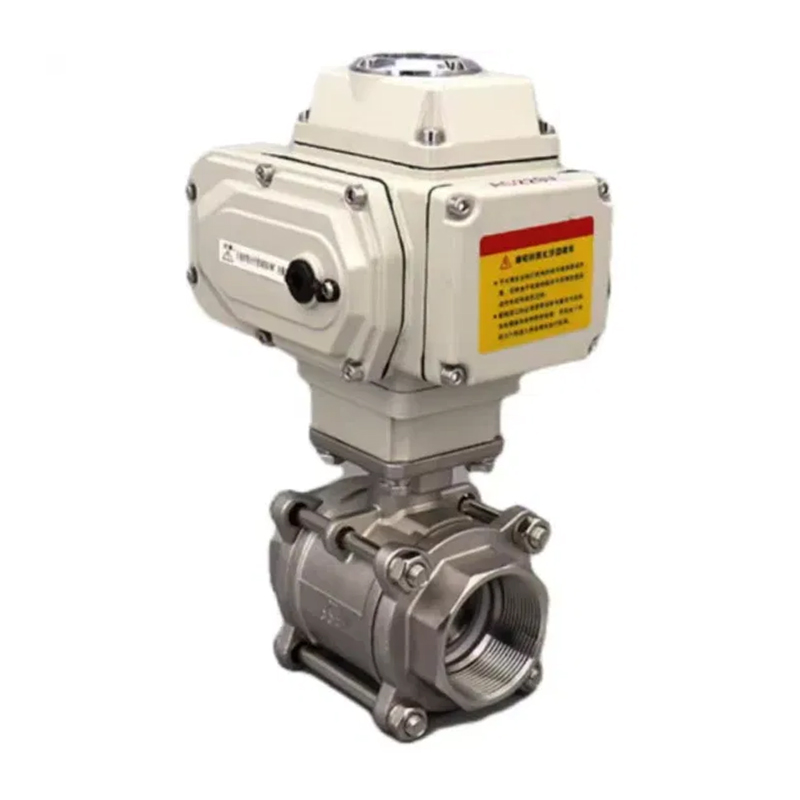

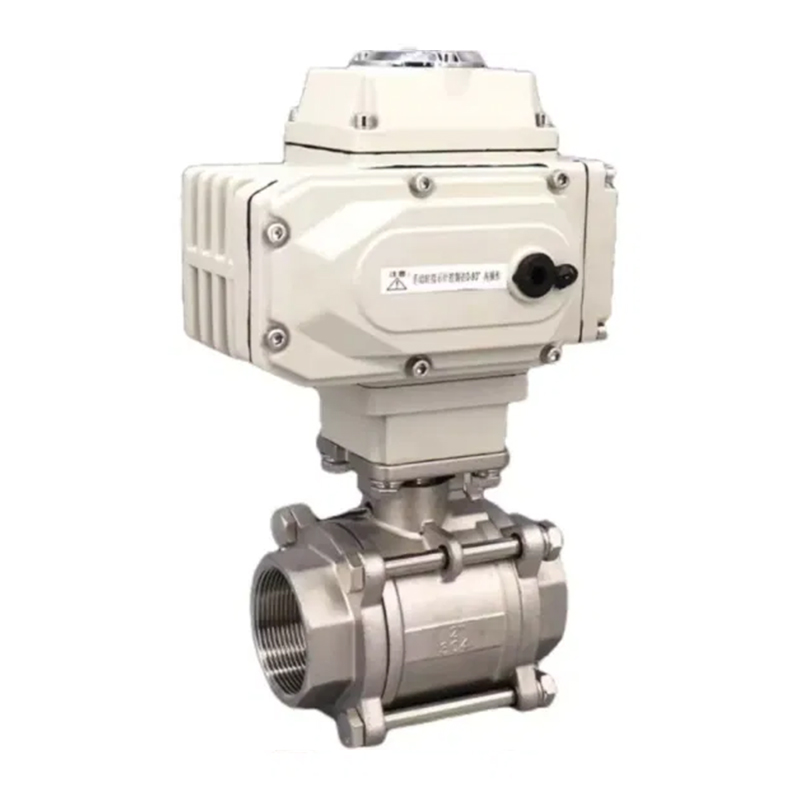

Q911F Electric fila pila valvae et blandeque pila valvae corpus mittuntur usura provectus technology a Taiwan, cum rationabile structuram et pulcher aspectu; Valvae sedem adoptat elastica sigillum structuram, quae certa signantes facile aperire et prope; Valvae derivantur adoptat imo mounts structuram cum converso signa et valvae caule non poteris ex quo valvae thalamum est enormis pressurized. Duo piece et tres piffum valvulae potest etiam esse coniungitur a bistae welding (BW) et Singulo Welding (SW), et utrumque potest instructum cum International Latin Iso Bracket Platforms et obfirmandis et densis cogitationes. Et tres piffum pila valvae habet parva volumine et composito ex tribus partes valvae habitationi. Clamped medio valvae corpus et pila valvae utroque fines quatuor seras. Commodum est quod durante sustentationem et disassembly, non est opus ad disassemble pipeline relatorum, et quatuor seras potest directe removetur media parte valvae corporis capi potest. Apta parva volumen angusta spatium applications in lucem industria machinatione. Is est parva magnitudine, simplex matching et altum fluunt capacitatem, praesertim idoneam condicionibus ubi medium est viscosa, granulares, aut fibrosum. Electric stamine pila valvulae late in industriae automatic imperium systems in industrias ut cibum, environmental praesidium, lux industria, PETROLEUM, papermaking, eget ipsum, doctrina et investigationis apparatu, et potentia.
Technica modularis
| Electric Actuator Libitum Features | Switching, integralis, adjusting, intelligentes |
| Electric Actuators sunt available in varietate models | QM, QC, AKQ Series |
| Voltage | AC220V, Ac110V, AC380, DC12V, DC24V, DC110V |
| Nominis diameter | Dn15mm ~ dn100mm |
| Nominis pressura | Pn1.0mpa ~ pn1.6mpa |
| Applicabiles temperatus | Ptee: -30- CXX ° C Ppl, ≤350 ° C Metal Sigillum: ≤450 ° C |
| Nexus | Screw filum |
| Corporis materia | 304,316,316L |
| Misc Material | 304,316,316L |
| Sedes lining | Ptee, ppl, metallum sigillis |
| Applicabiles | Aqua, PETROLEUM, acida, Viscosis fluidorum, slurry media, etc. |
Principalis mensam dimensionem
| Dn | L | H | D1 | D2 | |
| mm | inch | ||||
| 15 | 1/2 " | 75 | 42 | 15 | 21.8 |
| 20 | 3/4 " | 80 | 49 | 20 | 27.3 |
| 25 | I " | 90 | 58.5 | 25 | 34 |
| 32 | 11/4 " | 110 | 63 | 32 | 42.8 |
| 40 | 11/2 " | 120 | 71 | 38 | 48.9 |
| 50 | II " | 140 | 78 | 50 | 61.4 |
| 65 | 21/2 " | 185 | 100 | 63.5 | 74 |
| 80 | III " | 205 | 109 | 76 | 90 |
| 100 | IV "3 | 240 | 140 | 100 | 115.4 |
