D971X Electric Fibulae PAPILLUS CYMBALON

Adepto Quotes

Brevis

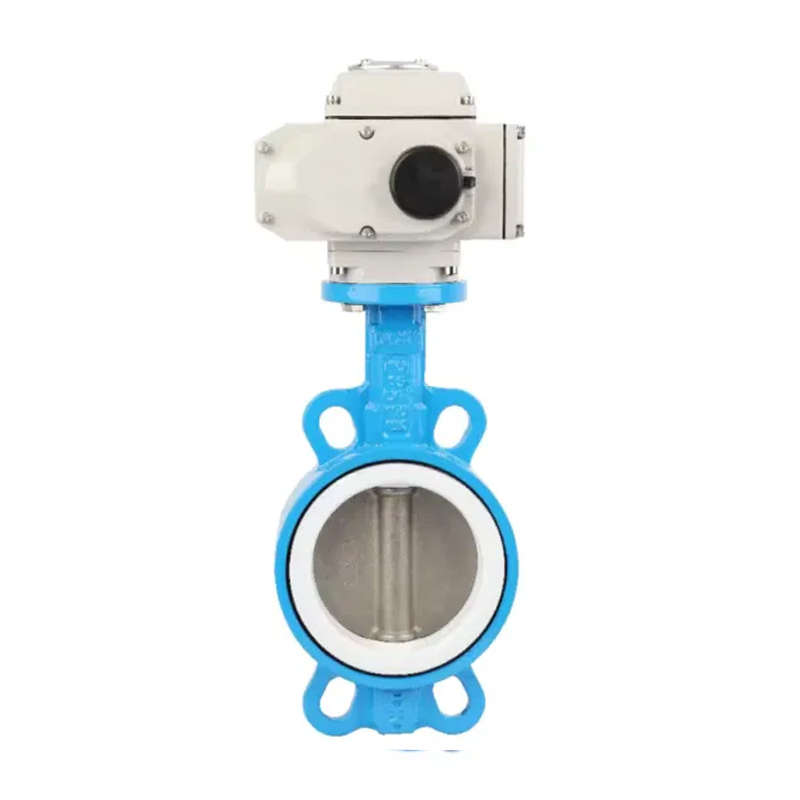

D971X electric wafer rubber butterfly valve has novel and reasonable design, simple structure, small size, light weight, 90-degree rotation, fast opening and closing, small operating torque, easy operation, labor-saving and dexterous. Potest installed ullo loco facile ponere. Et sigilli potest reponi, et signantes perficientur est reliable ad consequi duo-via signantes et nulla lacus, et signantes materiam est senescentis, repugnant, corrosio repugnant, et habet diu servitium vitae.
Cum laganum Flexilis papilio valvae in plene aperta situ, crassitudine papilio laminam solum resistentia cum medium fluit per valvae corporis. Ideo ex pressura gutta generatae a valvae est valde parvum, ita habet bonum influere potestate characteres. Papilio valvulae non solum late in generali industries ut PETROLEUM, Gas, eget industria, et aqua curatio, sed etiam in refrigerationem aquae ratio of thermal potentia plantis.

Technica modularis

Libitum Electric Actuator Features	Switch Type, integralis genus, regulating genus, intelligentes genus
Libitum Electric Actuator Models	Q, DQ, QM, QC, AKQ series, magna diametri libitum Z Series, AK Series
Voltage	AC220V, Ac110V, AC380, DC12V, DC24V, DC110V
Nominis diameter	Dn25mm ~ dn1400mm
Nominis pressura	Pn1.0mpa ~ pn1.6mpa
temperatura	EPDM: -30- 100ºC PTEE: -30- 120ºC
Nexus	Wafer Type
CYMBALON corpus Material	Ferrum Ductile, Carbon Steel, immaculatam ferro
Valvae laminam materiales	Dactile ferrum CCCIV, CCCXVI, 316L, MMDVII, 1,4529, aeris laminam, nylon, etc.
Valvae sedes lining	NBR, EPDM, PTFE
Applicabiles	Aquam, Gas, slurry, oleum, etc.

Nota super parametri normalis copia. Si specialis requisitis, placere indicant nostra venditio cum ordine.

Principalis mensam dimensionem

Dn		H1	H2	H3	L	L1	D	D1	D2	D3	D4	N-φd	N1-φ1
mm	inch	H1	H2	H3	L	L1	D	D1	D2	D3	D4	N-φd	N1-φ1
25	I "	55	96	25	33	/	71	85	32.5	65	50	IV-φ12	4-6.7
32	1.2 "	55	96	25	33	/	71	100	32.5	65	50	IV-φ12	4-6.7
40	1.6 "	55	105	25	33	/	81	110	40	65	50	IV-φ12	4-6.7
50	II "	80	161	32	42	84.84	118	120	52.9	77	57	IV-φ23	4-6.7
65	2.5 "	89	175	32	44.7	96	137	136	64.5	77	57	IV-φ27	4-6.7
80	III "	95	181	32	45.2	61	143	160	78.8	77	57	VIII-φ18	4-6.7
100	IV "	114	200	32	52.1	71	156	185	104	92	70	IV-φ25	4-10,3
125	V «	127	213	32	54.4	82	190	215	123.3	92	70	IV-φ23	4-10,3
150	VI "	139	226	32	55.8	91	212	238	155.6	92	70	IV-φ25	4-10,3
200	VIII "	175	260	45	60.6	113	268	295	202.5	115	89	IV-φ25	4-10,3
200	VIII "	175	260	45	60.6	76	268	295	202.5	115	89	IV-φ23	4-10,3
250	X "	203	292	45	65.6	92	325	357	250.5	115	89	IV - φ II IX	4-10,3
300	XII "	242	337	45	76.9	105	403	407	301.6	140	108	IV - φ II IX	4-10,3
350	XIV "	267	368	45	76.5	91	436	467	333.3	140	108	IV-φ30	4-10,3
400	XVI "	309	400	51	85.7	101	488	515	389.6	197	159	IV-φ26 IV-φ30	4-20,6
400	XVI "	309	400	72	85.7	102	488	525	389.6	197	159	IV-φ26 IV-φ30	4-20,6
450	XVIII "	328	422	51	104.6	88	539	565	440.5	197	159	IV-φ26	4-20,6
450	XVIII "	328	422	72	104.6	92	539	585	440.5	197	159	IV-φ30	4-20,6
500	XX "	360	480	53	130.28	97	594	620	491.6	197	159	IV - Φ II VI	4-20,6
500	XX "	360	480	78	130.28	102	594	650	491.6	197	159	IV-φ33	4-20,6
600	XXIV "	459	562	70	151.36	113	524	725	592.5	275	215	XX, φ30	8-18
600	XXIV "	459	562	82	151.36	121	524	770	592.5	275	215	XX, φ36	8-18
700	XXVIII "	520	624	66	163	110	895	840	695	300	254	XXIV, φ30	8-18
700	XXVIII "	520	624	82	163	110	895	840	695	300	254	XX, φ36	8-18
800	XXXII "	591	672	66	188	124	1015	950	795	300	254	XXIV-φ33	8-18
800	XXXII "	591	672	82	188	124	1015	950	795	300	254	XXIV, φ39	8-18
900	XXXVI "	656	720	118	203	118	1115	1050	865	300	254	XXIV, φ33	8-18
1000	XL "	722	800	141	216	130	1230	1160	965	300	254	XXIV, φ36	8-18
1200	XLVIII "	765	860	184	231	150	1350	1260	1040	350	302	XXVIII, φ36	8-18
1400	LVI "	804	920	240	250	178	1440	1400	1132	350	302	XXVIII, φ36	8-18
