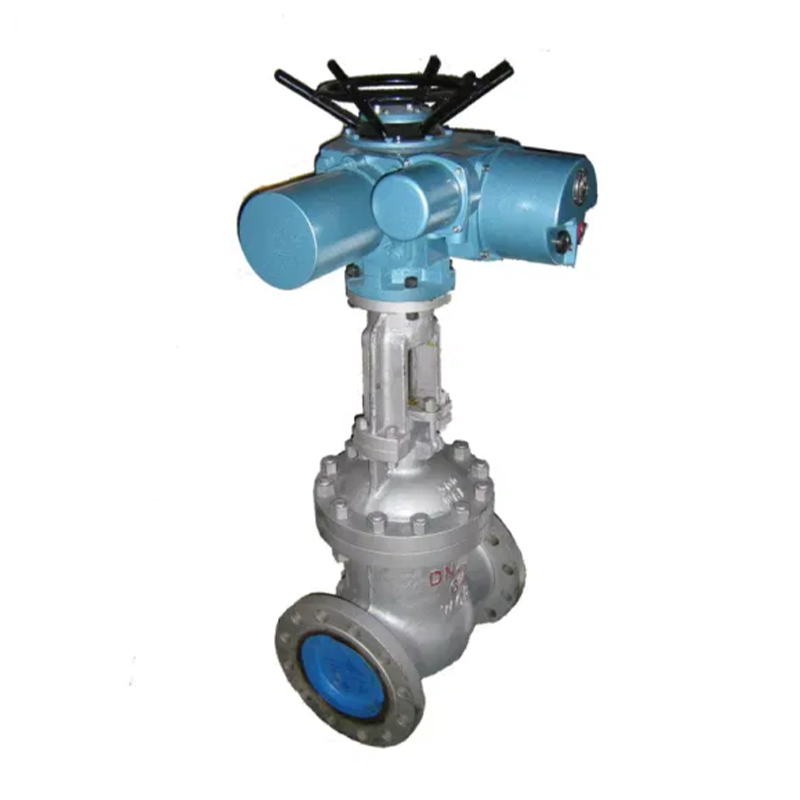

Z941H Electric porta CYMBALON

Adepto Quotes

Brevis

Z941H Electric Porta CYMBALON est maxime usus ad altum et medium pressura Flange iunctio porta valvulae. Est idoneam Pipelines variis systems in PETROLEUM, eget, hydropower, et scelerisque potentia plantae cum nominis pressura pn1.6 ~ 16.0mpa et operantes temperatus -29ºC ~ 550ºC ut interficiam off aut iungo pipeline Media. Applurable Media sunt: aqua, oleum, vapor, acidum, alkali, ammoniaci, urea, sulphur, quibus naturalis Gas, etc Pipelines aut vertical Pipelines. Una et duplex porta valvulae sit installed in horizontali pipelines, et handwheel sita super valvae. Non licet esse installed deorsum. Fluxus directionem portam valvae medium non restringitur. Flange nexum est solet usus et Welding nexum est etiam in specialibus occasiones. Nam magna-diametro, et summus pressura porta valvulae, in foramen et claudendo torque est magna. Ut ad redigendum ostium et claudendo torque, bypass valvae potest installed. Bypass valvae installed extra pelagus portam CYMBALON. Utrimque porta porta et exitus connexae sunt valvae et internonected. Bypass valvae aperiri ante Pelagus ostium valvae aperitur. Post intrantes valvae pressura differentia ante portam Pelagus portae valvae reducitur, ita reducendo foramen torque de porta valvae. Electio bypass valvum diametrum debet fundatur principalis valvae diameter et usus elit.

Technica modularis

Libitum Electric Actuator Features	Switch Type, integralis genus, regulating genus, intelligentes genus
Libitum Electric Actuator Models	Z Series libitum, AK series
Voltage	AC220V, AC380
Nominis diameter	Dn40mm ~ dn1000mm
Nominis pressura	Pn1.0MPA ~ PN6.4MPA
temperatura	-30 ~ 550ºC
Nexus	Flange
CYMBALON corpus Material	Medico, immaculatam ferro
Valvae laminam materiales	Medico, immaculatam ferro
Valvae sedes lining	Ppl, corpus materiales
Applicabiles	Aqua, oleum, vapor, acidum, alkali, ammonia, urea, acidum naturalis Gas, etc.

Principalis mensam dimensionem

PN (MPA)	DN (mm)	L	D	D1	D2	b	Z-φd
1.6	40	200	145	110	85	16	IV-φ18
	50	250	160	115	100	16	IV-φ18
	65	265	180	145	120	18	IV-φ18
	80	280	195	160	135	20	VIII-φ18
	100	300	215	180	155	20	VIII-φ18
	125	325	245	210	185	22	VIII-φ18
	150	350	280	240	210	24	VIII-φ23
	200	400	335	295	265	26	XII, φ23
	250	450	405	355	320	30	XII, φ25
	300	500	460	410	375	30	XII, φ25
	350	550	520	470	435	34	XVI, φ25
	400	600	580	525	485	36	XVI, φ30
	450	650	640	585	545	40	XX, φ30
	500	700	705	650	608	44	XX, φ34
	600	800	840	770	718	48	XX, φ41
	700	900	910	840	788	50	XXIV, φ41
	800	1000	1020	950	898	52	XXIV, φ41
	900	1100	1120	1050	998	54	XXVIII, φ41
	1000	1200	1255	1170	1100	56	XXVIII, φ48
	1200	1300	1485	1390	1325	58	XXXII-φ54
2.5	40	200	145	110	85	18	IV-φ18
	50	250	160	125	100	20	IV-φ18
	65	265	180	145	120	22	VIII-φ18
	80	280	195	160	135	22	VIII-φ18
	100	300	230	190	160	24	VIII-φ23
	125	325	270	220	188	28	VIII-φ25
	150	350	300	250	218	30	VIII-φ25
	200	400	360	310	278	34	XII, φ25
	250	450	425	370	332	36	XII, φ30
	300	500	485	430	390	40	XII, φ30
	350	550	550	490	448	44	XVI, φ34
	400	600	610	550	505	48	XVI, φ34
	450	650	660	600	555	50	XX, φ34
	500	700	730	660	610	52	XX, φ41
	600	800	840	770	718	56	XX, φ41
	700	900	955	875	815	60	XXIV-φ48
	800	1000	1070	990	930	64	XXIV-φ48
	900	1100	1180	1090	1025	66	XXVIII, φ54
	1000	1200	1305	1210	1140	68	XXVIII, φ58
	1200	1300	1525	1420	1350	72	XXXII-φ58

PN (MPA)	DN (mm)	L	D	D1	D2	D6	b	Z-φd
4	40	200	145	110	85	76	18	IV-φ18
	50	250	160	125	100	88	20	IV-φ18
	65	280	180	145	120	110	22	VIII-φ18
	80	310	195	160	135	121	22	VIII-φ18
	100	350	230	190	160	150	24	VIII-φ23
	125	400	270	220	188	176	28	VIII-φ25
	150	450	300	250	218	204	30	VIII-φ25
	200	550	375	320	282	260	38	XII, φ30
	250	650	445	385	345	313	42	XII, φ34
	300	750	510	450	408	364	46	XVI, φ34
	350	850	570	510	465	422	52	XVI, φ34
	400	950	655	585	535	474	58	XVI, φ41
	450	1050	680	610	560	524	60	XX, φ41
	500	1150	755	670	612	576	62	XX, φ48
	600	1350	890	795	730	678	62	XX-φ54
	700	1450	995	900	835	768	68	XXIV-φ54
	800	1650	1135	1030	960	876	76	XXIV-φ58
6.4	40	240	165	125	95	76	24	IV-φ23
	50	250	175	135	105	88	26	IV-φ23
	65	280	200	160	130	110	28	VIII-φ23
	80	310	210	170	140	121	30	VIII-φ23
	100	350	250	200	168	150	32	VIII-φ25
	125	400	295	240	202	176	36	VIII, φ30
	150	450	340	280	240	204	38	VIII-φ34
	200	550	405	345	300	260	44	XII, φ34
	250	650	470	400	352	313	48	XII, φ41
	300	750	530	460	412	364	54	XVI, φ41
	350	850	595	525	475	422	60	XVI, φ41
	400	950	670	585	525	474	66	XVI, φ48
	450	1050	715	630	570	524	68	XX, φ48
	500	1150	800	705	640	576	70	XX-φ54
	600	1350	930	820	750	678	76	XX, φ58
